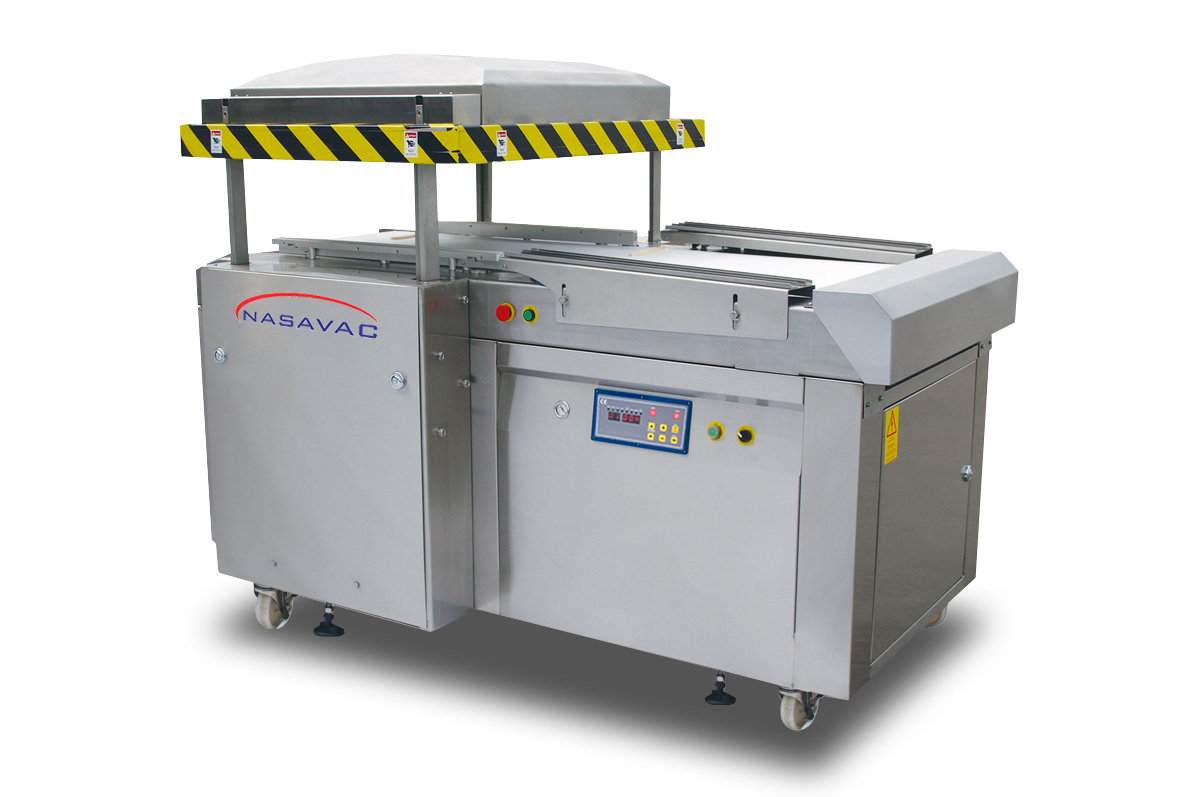

Workhorse Inline Belt Type Vacuum Sealer

VCS-30

Belt type vacuum sealer provides continuous vacuum packaging for applications that require maximum air removal from a bag and the highest production speeds. It is an ideal tool for vacuum packaging of meat products, fresh meat, dairy products and other easily perishable food. It is digitally controlled and fully automatic. The machine cycles through the vacuum and seal process, while an operator loads the next batch of packages to be vacuum sealed. The control system is powered by micro-controller with 20 programmable memory settings.

  • Stainless steel chassis

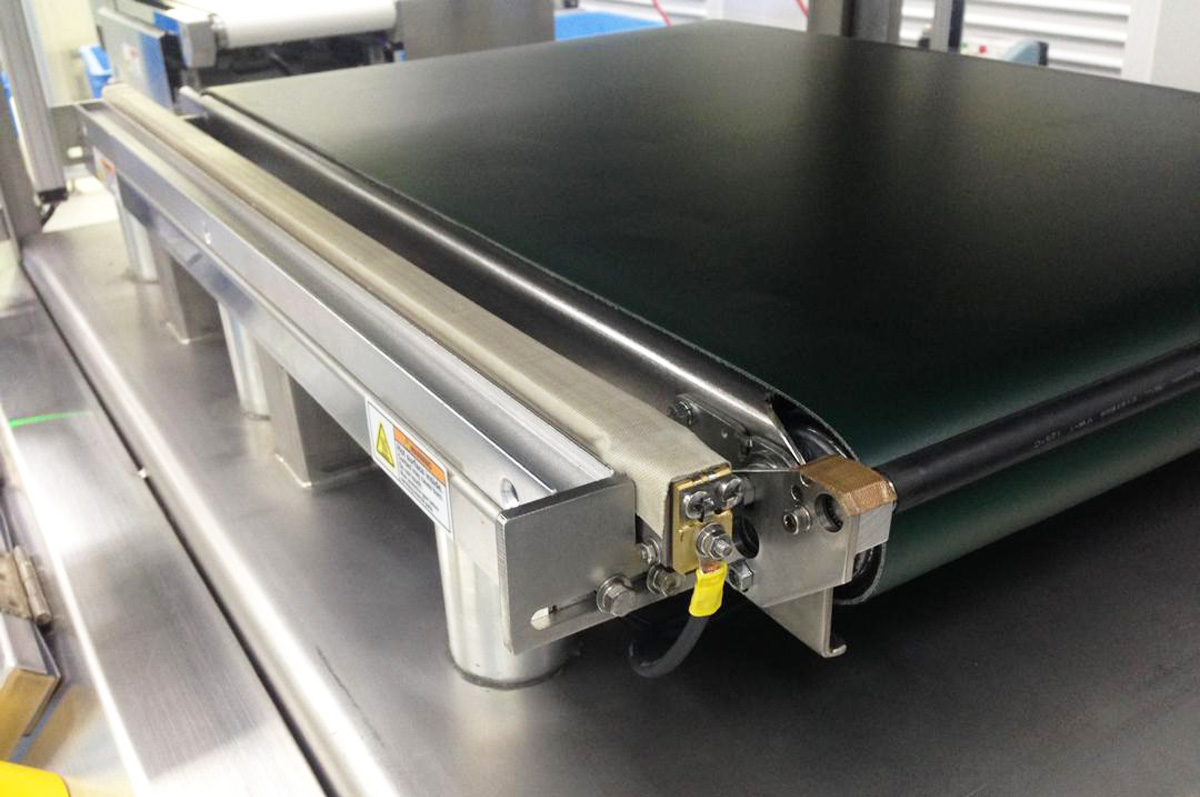

  • Food grade conveyor belt
  • Operator friendly chamber safety cover protects operator from injury
  • High performance impulse sealing system
  • Aluminum alloy sealing bar with bladder activated sealing
  • Compact design to suite space constrain production area, small and medium industry

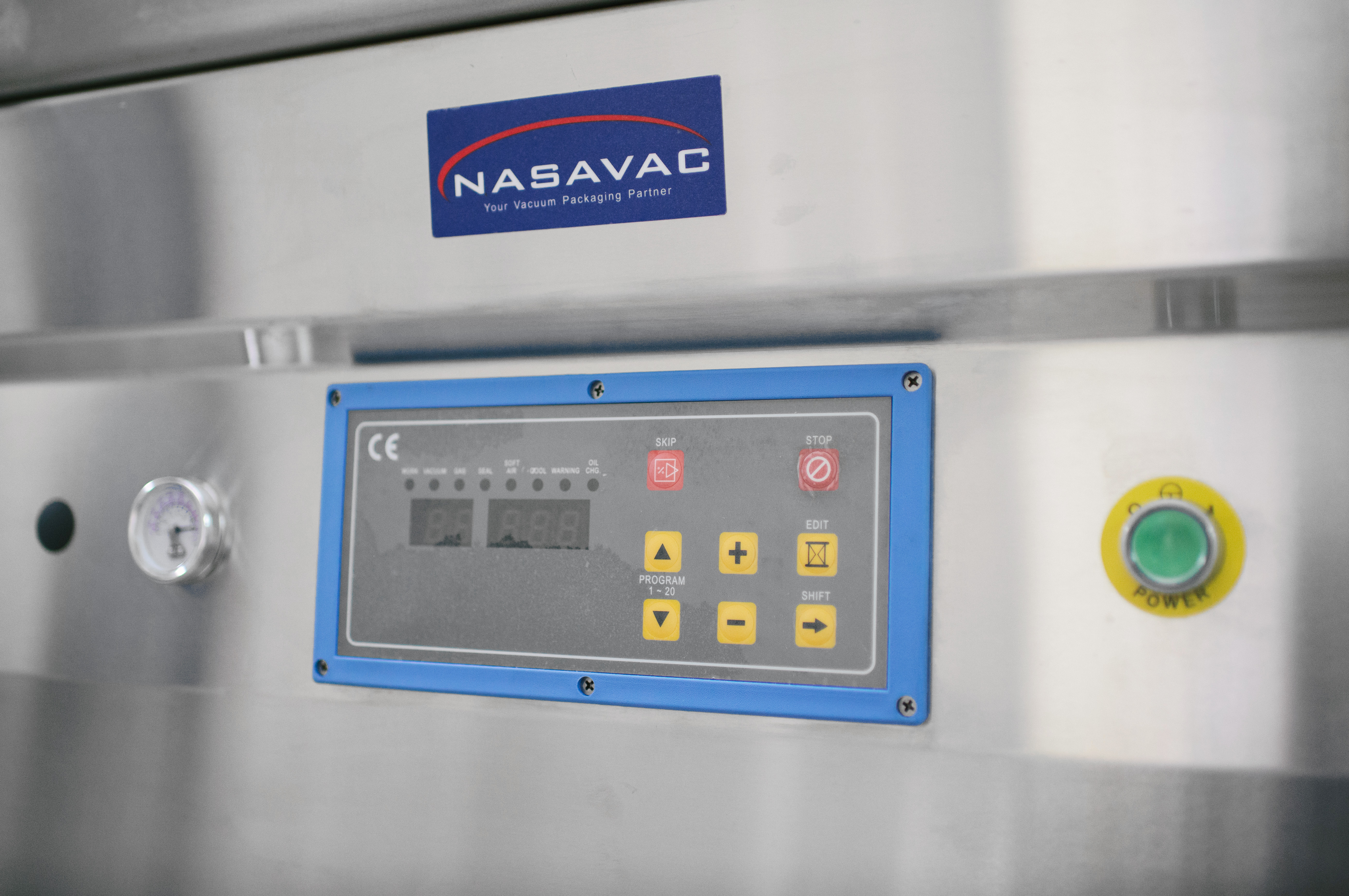

  • Water resistance control panel (IP-65)
  • Powered by micro-controller with 20 programmable memory settings
  • Auto & manual operation mode
  • Oil change indicator
  • Emergency reset system
  • Stainless steel chamber lid
  • Flat working platform for easy cleaning
  • Easy sealing element and Teflon tape replacement

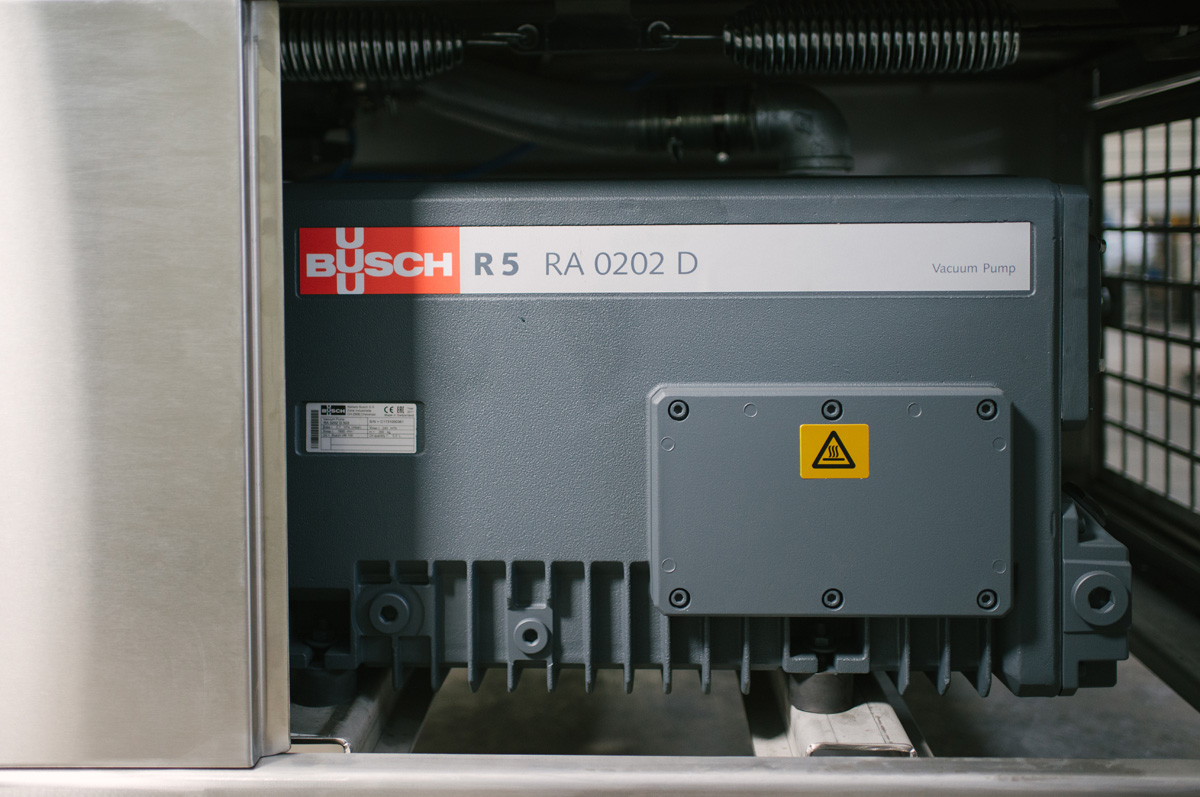

  • Powered by BUSCH oil lubricated rotary vane vacuum pump
Model
VCS-43
Power:
Three Phase AC 220V, 60Hz
Dimensions:
(L) 126″ x (W) 53″ x (H) 52 ½”
Machine Weight:
1984 lb
Chamber Height:
8 ¼” (Effective Depth = 8″)
Chamber Dimension:
(L) 43 ¼” x (W) 30 ½” x (H) 8″
Sealing Bar Configuration:
Front & Back: Seal Bar Distance = 30 ½”
Sealing Length:
Front & Back Configuration: 43 ¼”
Sealing Width:
6mm (Double Beam)
Maximum Vacuum:
-29 inHg
Vacuum:
202m3/H BUSCH Oil Lubricated Rotary Vane Vacuum Pump
  • Vacuum Filter
  • Gas Purging / Flushing
    Gas Purge Function
  • Soft Air Sensor Control
  • Bi-Active Impulse Sealing System (Top & Bottom Heating)
  • 10mm Sealing Width
  • Vacuum Pressure Control Option
    Digital Vacuum Sensor
  • Other Voltage Configuration

Coming soon
