MPT Series

Validatable Medical Impulse Sealer

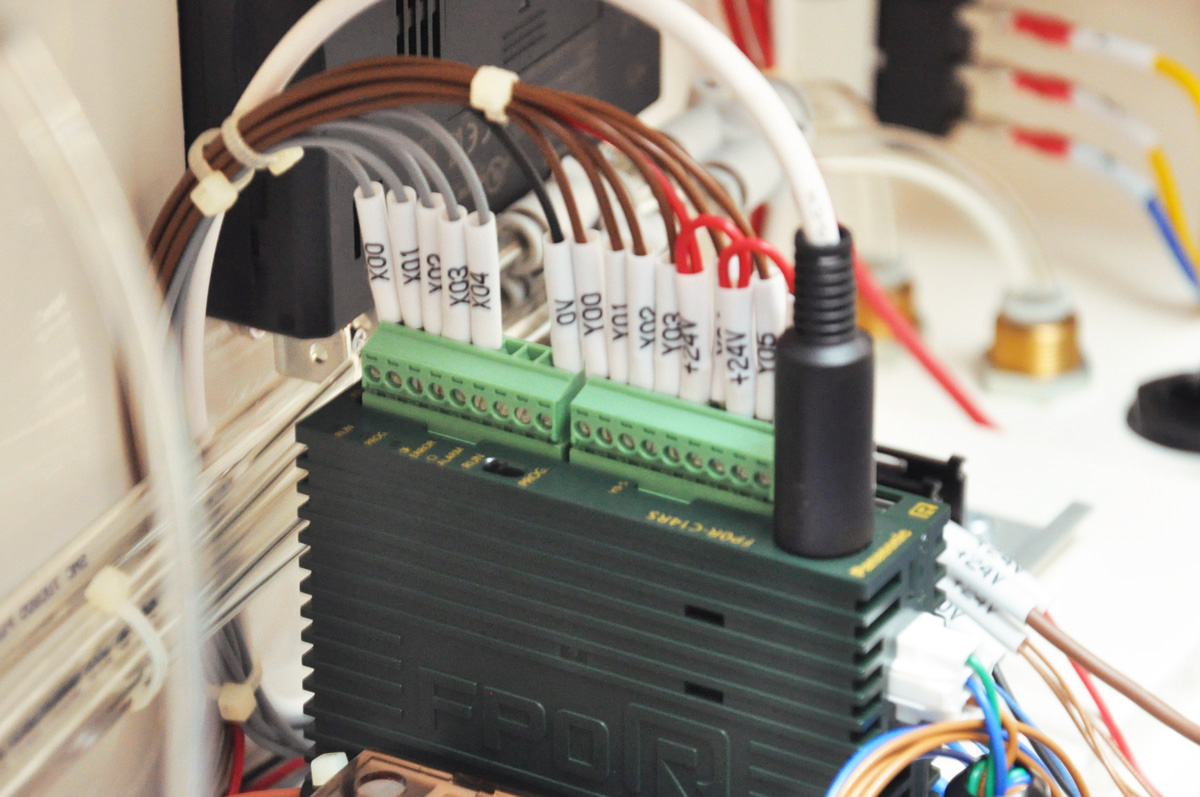

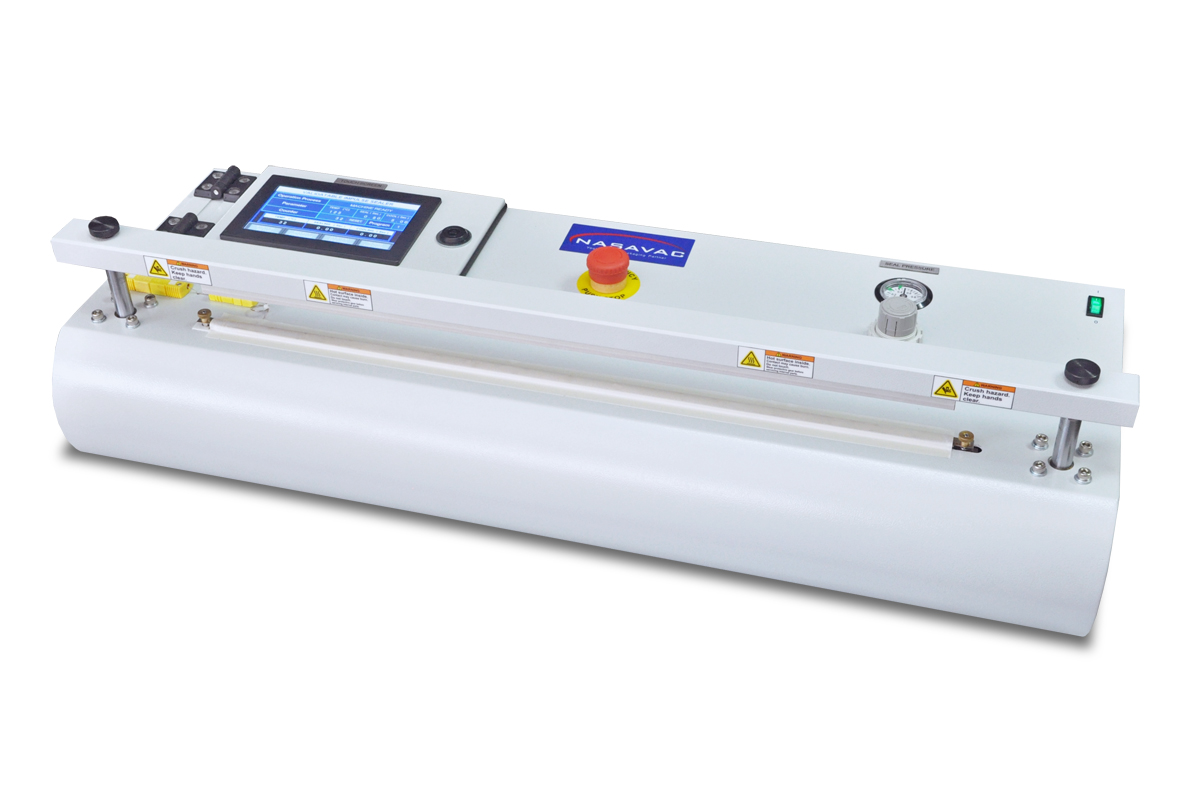

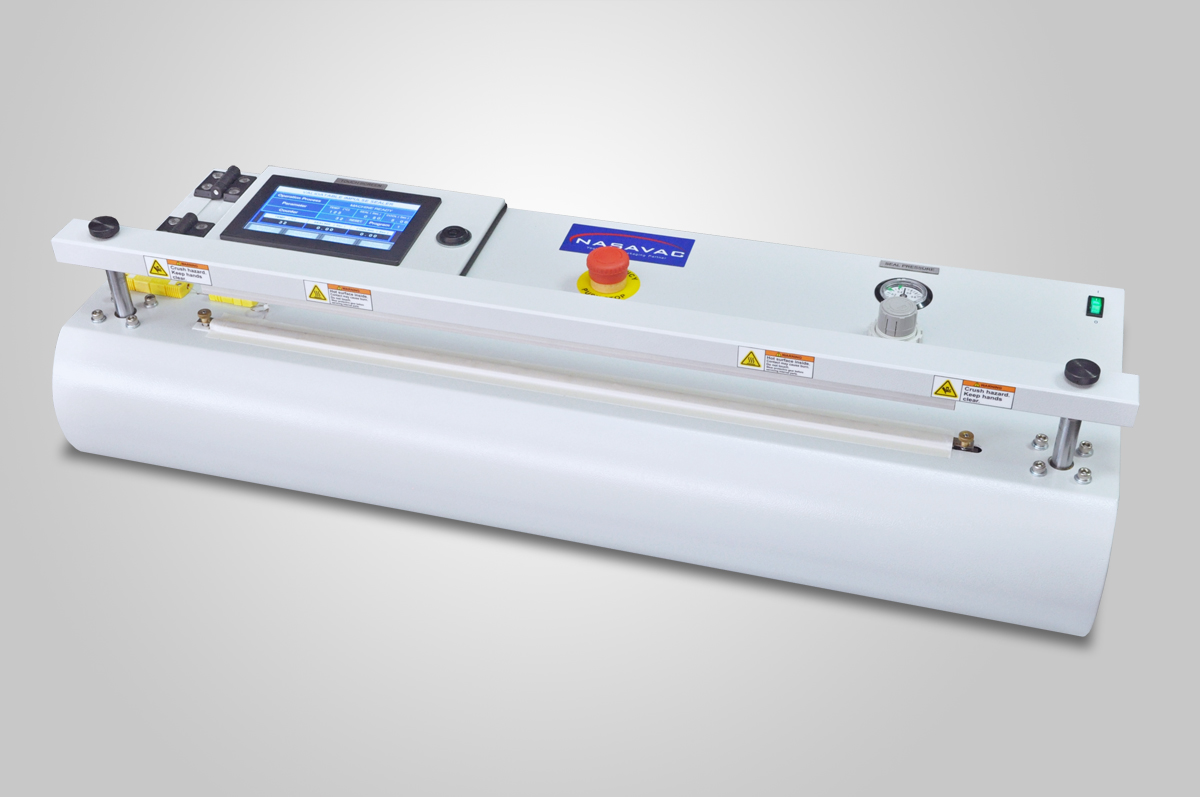

MPT series validatable medical impulse sealer is a PLC controlled with touch panel HMI interface and available in 20″, 25″ and 30″ sealing length. It is built with external verification ports for ease of calibration.

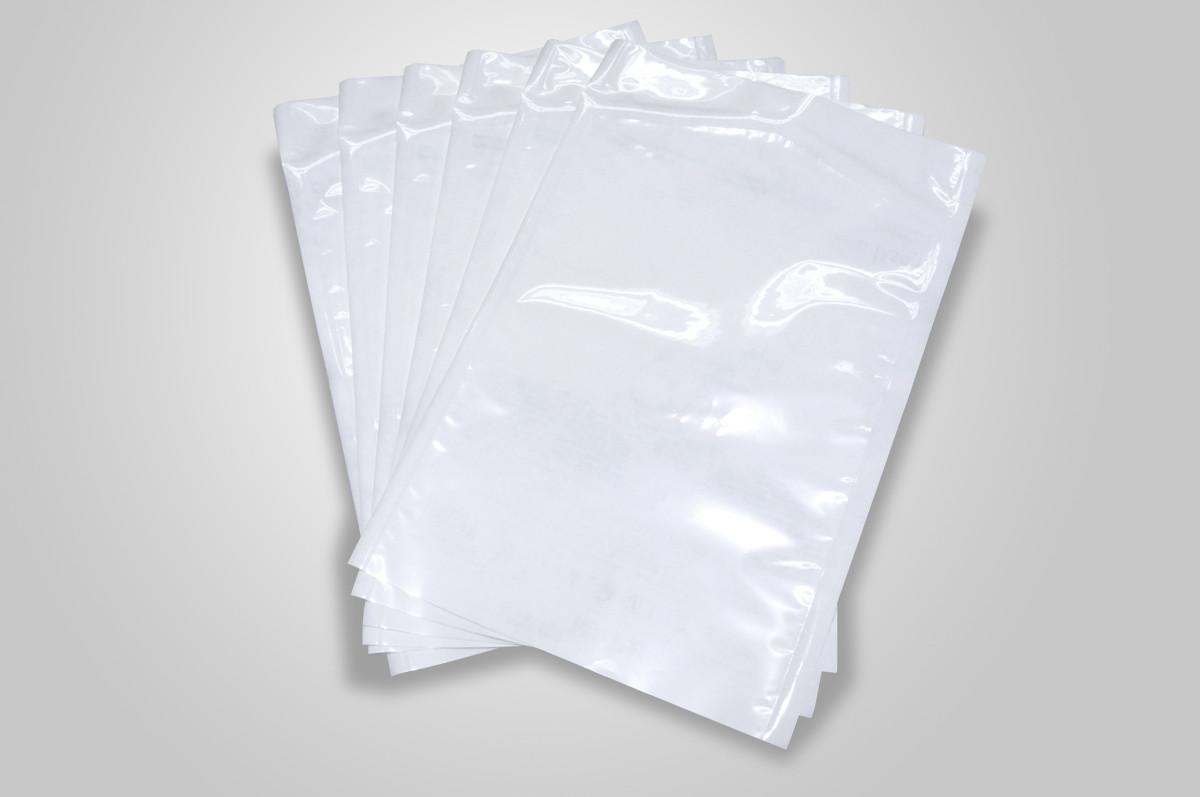

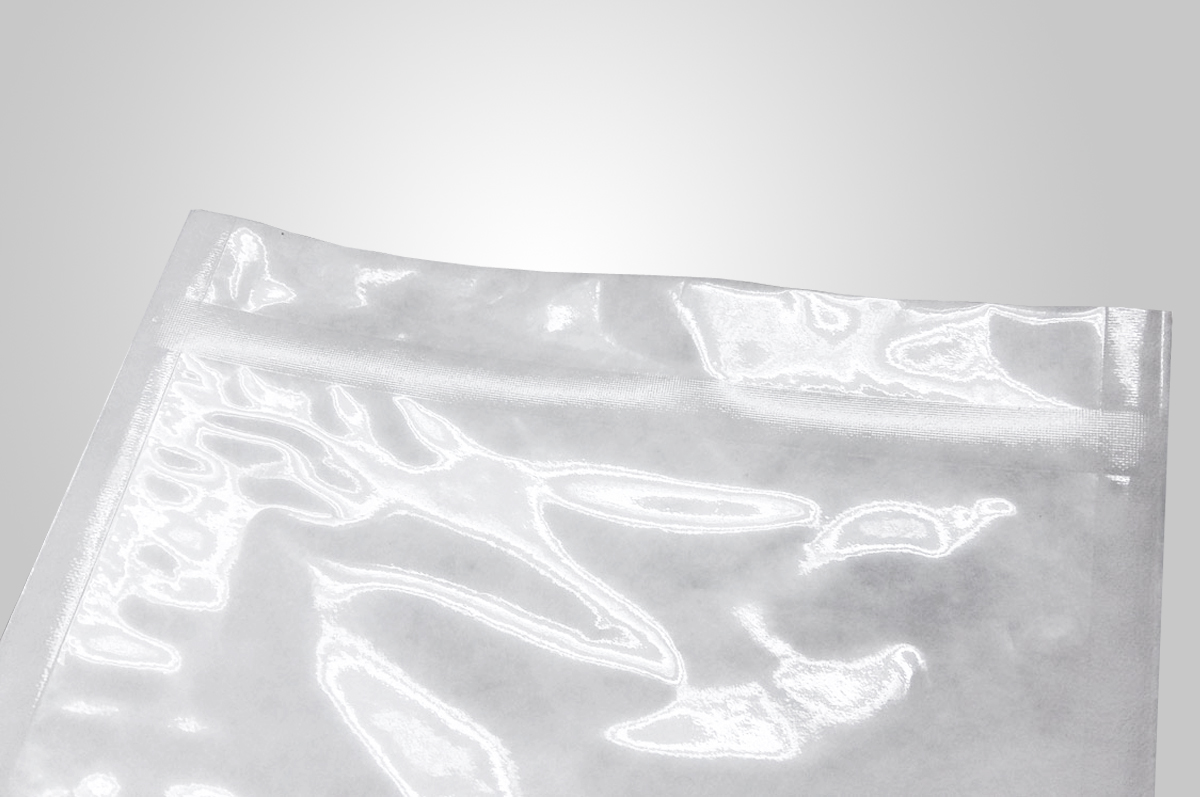

Variable sealing timer, sealing temperature , sealing pressure and cooling time ensure precise control over to heat seal pouch. With an outstanding PID controlled impulse sealing system, you can have confidence in sealing a wide range of materials such as Tyvek®  medical microbial barrier pouch and laminated films.

  • Compatible for cleanroom application
  • Mild steel powder coating chassis

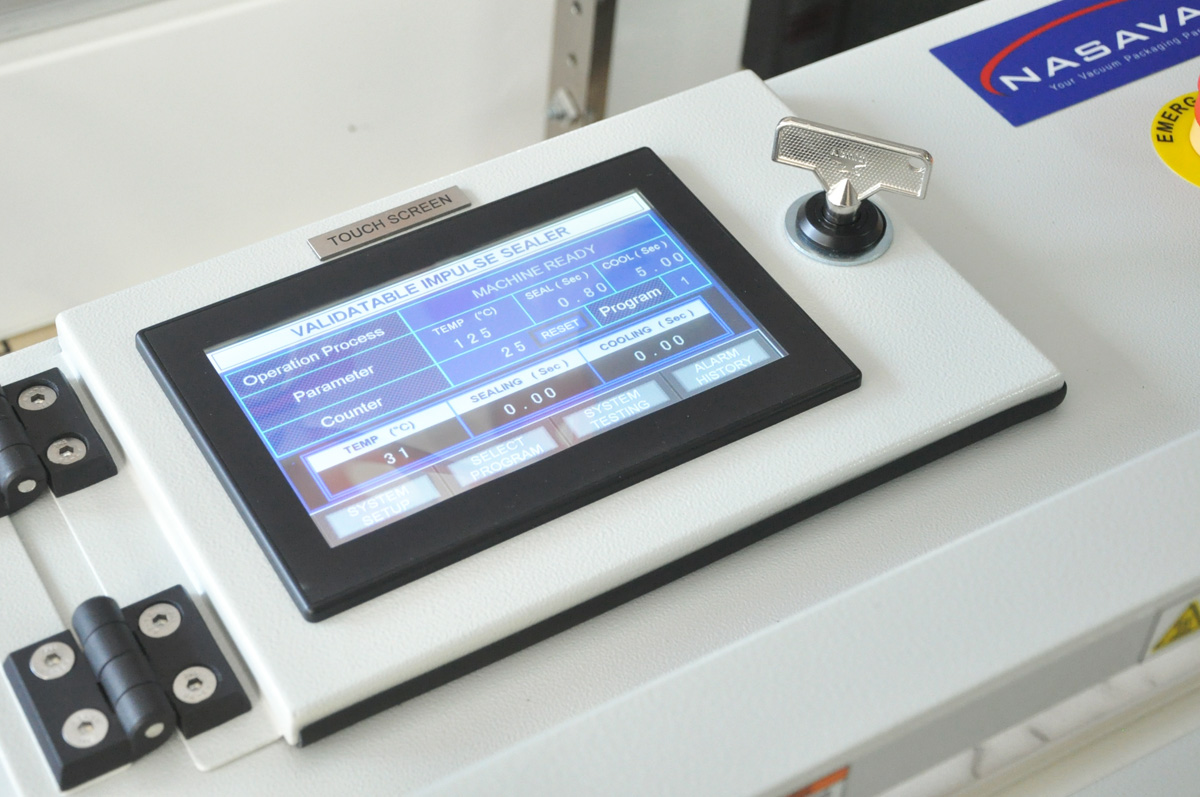

  • Touch screen displays seal temperature, seal time, cool time, seal pressure (Analog regulator with digital readout of pressure)
  • Password protection for perimeter setting and recipes
  • Object / Finger anti-pinch safety system
  • Built-in emergency stop push button
  • Easy set-up requires only compressed air, standard electrical outlet

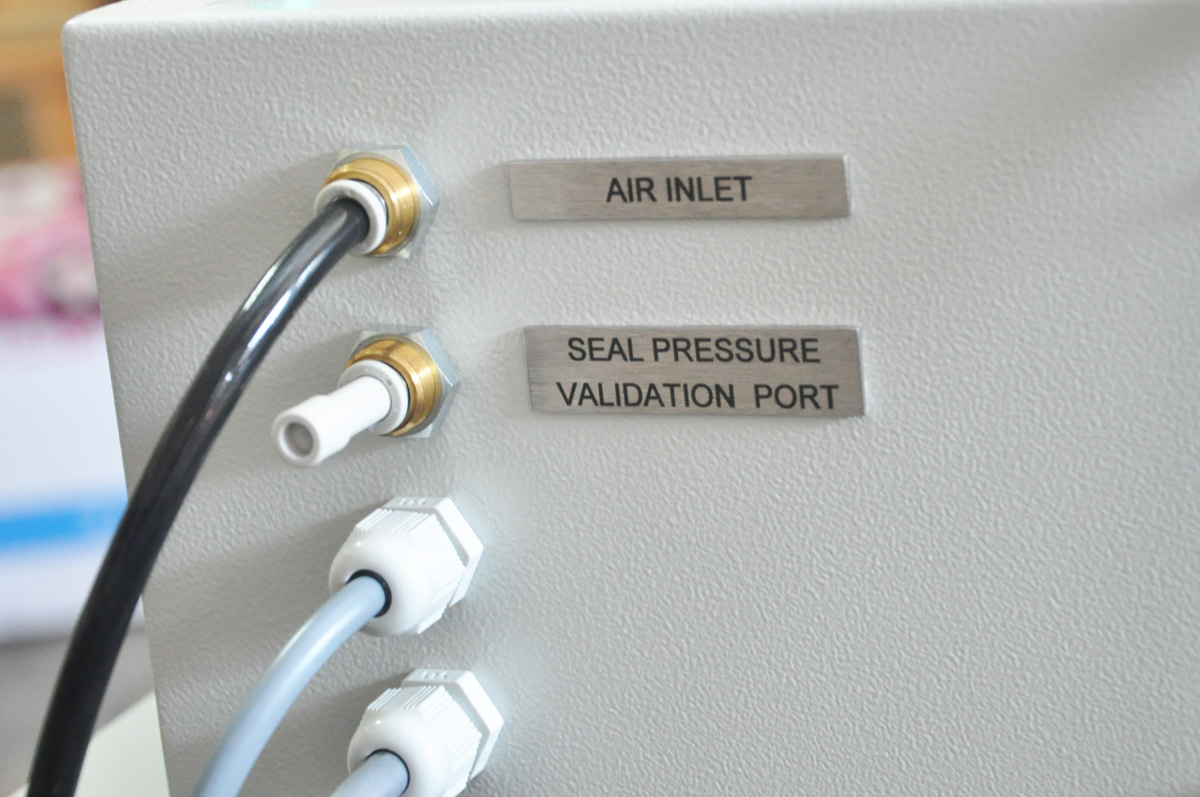

  • External validation port for seal temperature, seal pressure, seal time, cool time
  • 10 programmable recipe for seal temperature, seal time, heat time and cool time settings
  • Data logging for seal temperature, seal time, cool time, seal pressure
  • Visible and audible alarms
  • Packing counter for production monitoring
  • High performance impulse sealing system with PID control
  • Electronic foot pedal switch activated
Single Phase AC 110V, 60Hz
Air Requirement:
82 PSI @ 5 cfm
Dimensions:(L) 31 ½” x (W) 23″ x (H) 13″(L) 36 ½” x (W) 23″ x (H) 13″(L) 41 ½” x (W) 23″ x (H) 13″
Seal Dimension:(L) 20″ x (W) 10mm(L) 25″ x (W) 10mm(L) 30″ x (W) 10mm
Control System:
PLC & Touch Screen Control
10 Programmable Recipes
Validation Port:
Seal Temperature, Seal Pressure, Timers
Data Logging:
Seal Temperature, Seal Pressure, Seal Time, Cool Time
  • Fully Stainless Steel Chassis
  • Stainless Steel Working Platform

    EDG Series Stainless Working Platform

  • Seal Data Printing System on Label Thermal Printer
  • Vertical Stand
  • Other Voltage Configuration (220V/240V AC or 100V AC)

Coming soon.
