Medical Nozzle Type Vacuum Sealer with Gas Purge

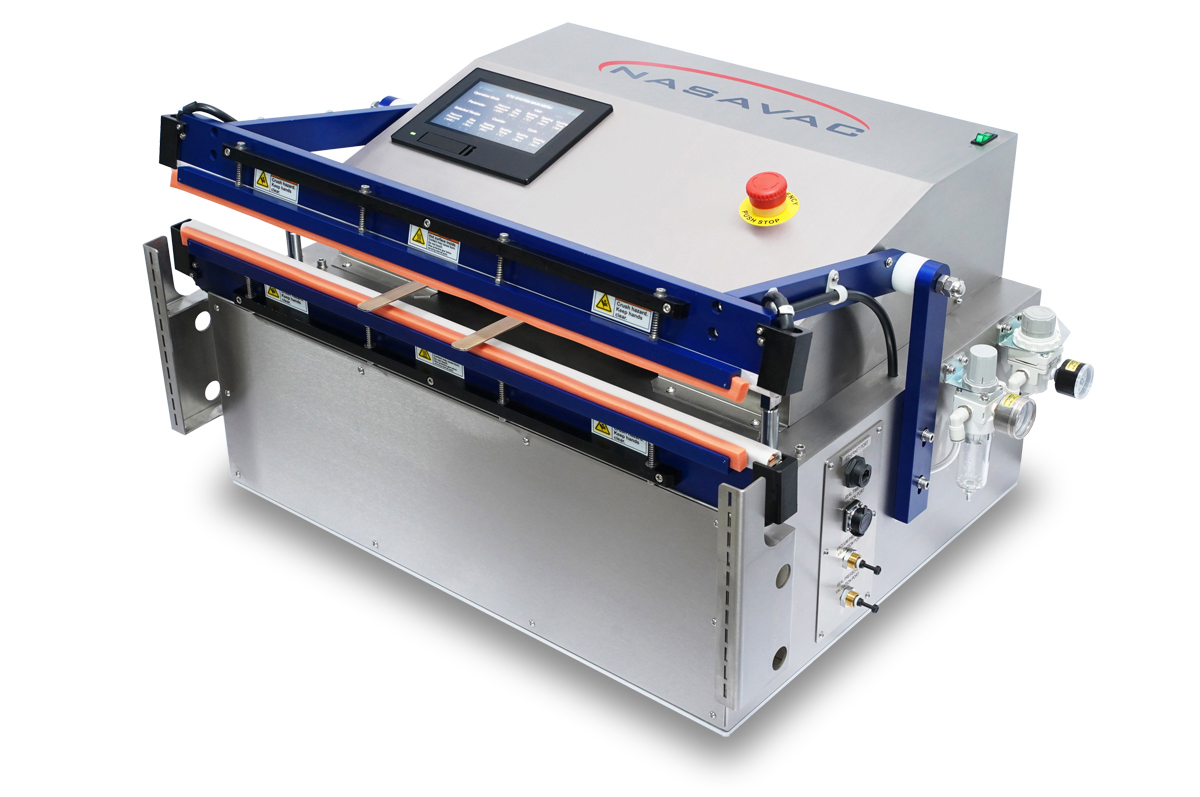

Columbia Medical Nozzle Type Vacuum Sealer

Columbia series validatable nozzle type vacuum sealer with gas purge is engineered to conform with stringent guidelines of ISO 11607 terminally sterile medical packaging requirements. The built-in external validation ports allow for validation and calibration of internal controllers for IQ/OQ processes. With proper qualification, process consistencies and seal validation protocols in place the vacuum sealer eliminates serious issues for highly-regulated pharmaceutical, medical devices, and clinical industries.

NasaVAC Columbia series validatable nozzle type vacuum sealer is equipped with ultra-impulse sealing system capable of temperature control and feedback system. The sealer produces consistent hermetic seals for a wide range of heat sealable materials coupled with temperature control, seal pressure control, microcontroller sealing and cooling timers. The Bi-Active impulse sealing system (top & bottom heating) seals Tyvek®, almost any medical pouch sealing application, all popular moisture barrier bag materials, anti-static pouches, and complex materials from 30” to 40” (bag opening length).

The powerful microcontroller has the capability of handling electronic records for seal parameters such as seal pressure, seal temperature, seal timer and cool timer with multilevel password protection and access to meet FDA’s CFR 21 Part 11 requirement. The protected electronic records are later to be retrieved by authorized individuals for computer-generated, time-stamped audit trials. It is most common practice for medical devices industry.

  • Compatible for cleanroom application
  • Stainless steel chassis

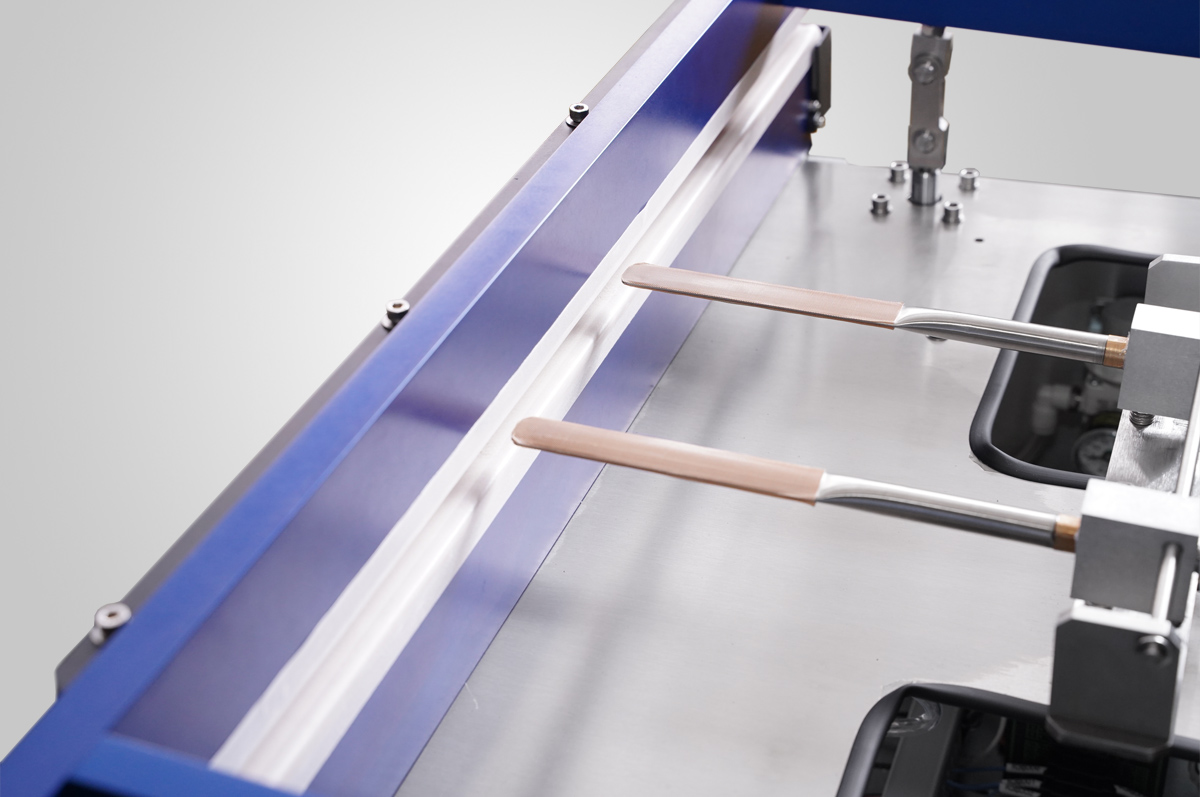

  • High flow stainless steel retractable twin nozzles
  • Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
  • Easy set-up requires only compressed air, standard electrical outlet
  • Safety Features: Object / Finger anti-pinch safety system, Built-in emergency stop push button

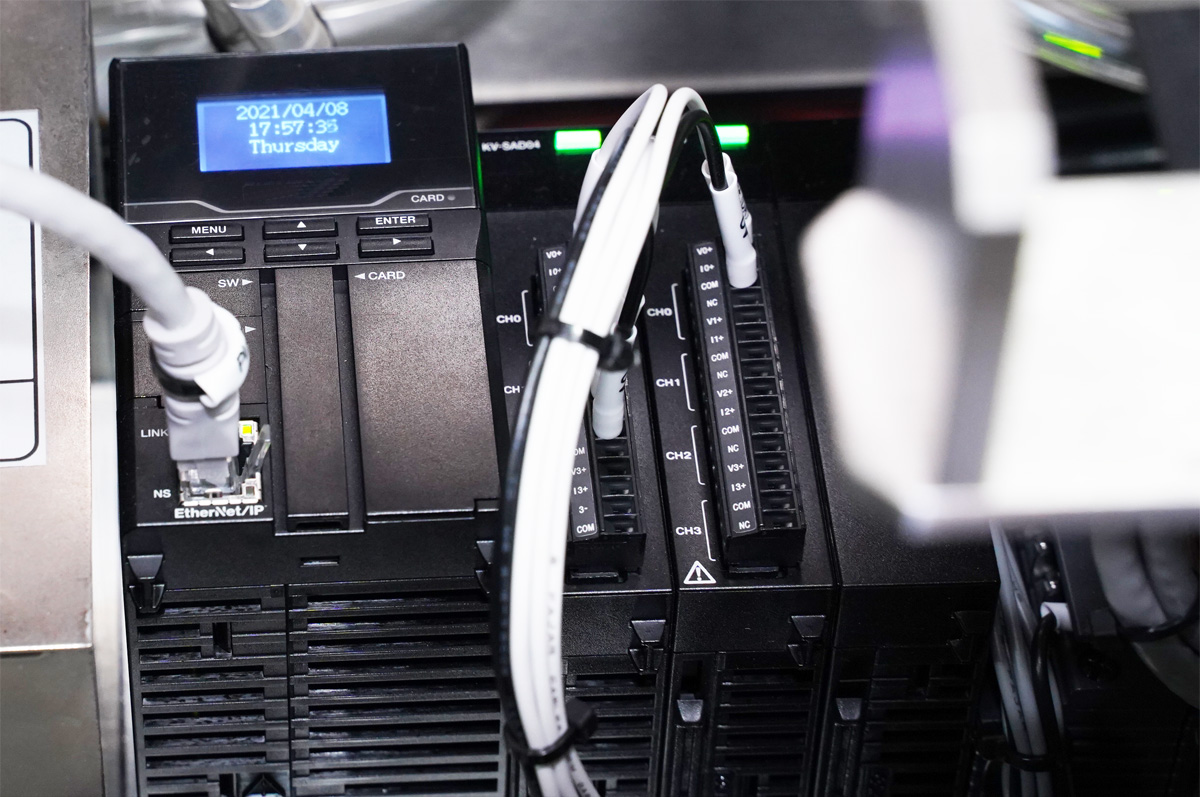

  • PLC control & touch screen (HMI) system
  • Multilevel password protection
  • 6 programmable recipes
  • 5 operation modes: Vac-Gas, Gas-Vac, Multi Stage Vac-Gas or Gas-Vac, Manual Vacuum & Seal Only
  • Multiple cycles of gas purging operation (1 to 10 cycles)
  • Sealing only mode without nozzles extend
  • Packing counter for production monitoring
  • Visible and audible alarm

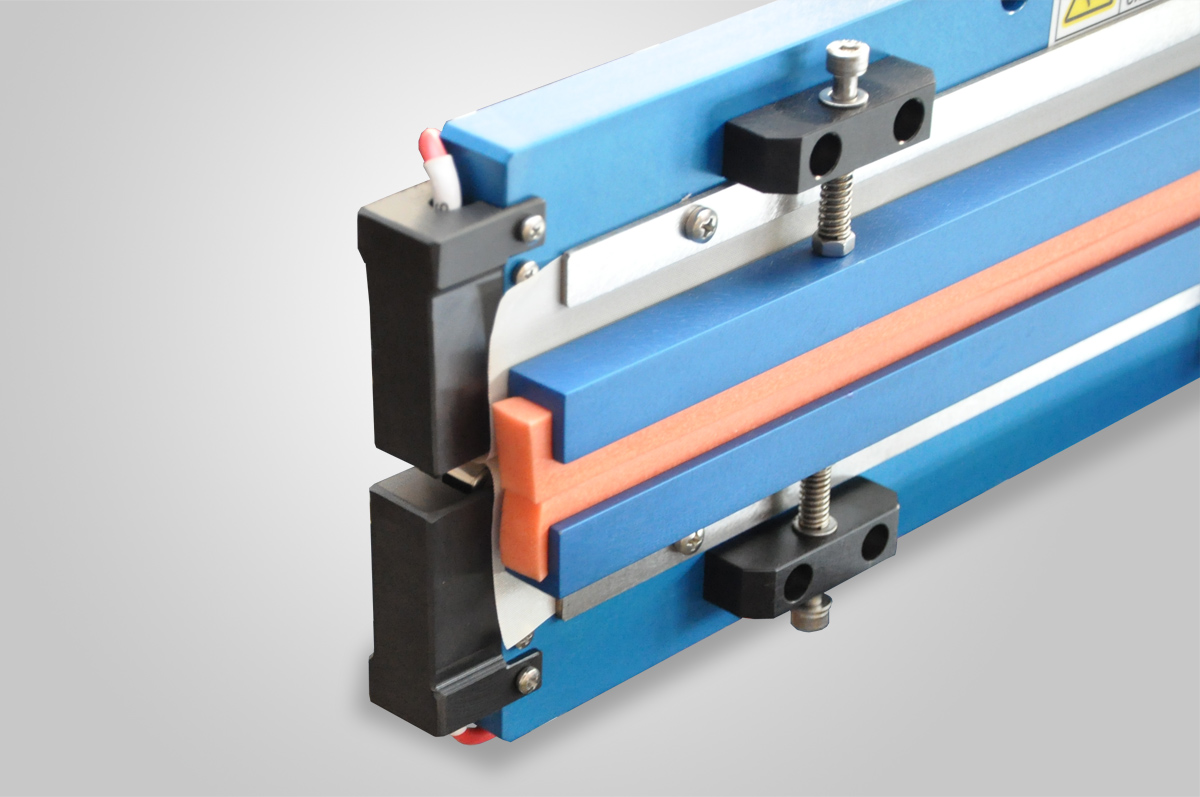

  • High performance Bi-Active impulse sealing system (top & bottom heating type)
  • Electronic foot pedal switch activated
  • Process validation
  • Calibration
  • Data Logging
ModelColumbia 30Columbia 35Columbia 40
Single Phase AC 110V, 60Hz
Air Requirement:
87 PSI @ 5 cfm
Flow: 5.85 cfm, Pressure: 60 PSI (Max), Nitrogen (N2), Argon (Ar) or Carbon Dioxide (CO2)
Dimensions:(L) 30.5″ x (W) 26.5 x (H) 17.5″(L) 35.5″ x (W) 26.5″ x (H) 17.5″(L) 40.5″ x (W) 26.5″ x (H) 17.5″
Seal Dimension:(L) 30″ x (W) 8mm(L) 35″ x (W) 8mm(L) 40″ x (W) 8mm
Operation Mode:
5 operation modes: Vac-Gas, Gas-Vac, Multi Stage Vac-Gas or Gas-Vac, Manual Vacuum & Seal Only
Flow: 12.94 cfm, Pressure: -27 inHg (Max), Vacuum Ejector Pump
Ultra Impulse Sealing System with Temperature Feedback, Seal Pressure. Seal time starts when set temperature reaches preset to keep sealing consistency and ensuring repeatable seals
Validation Port:
Seal Timer, Vacuum Pressure, Seal Pressure
ANSI/ISO Calibration based on ISO/IEC 17025
  • Stainless Steel Working Platform

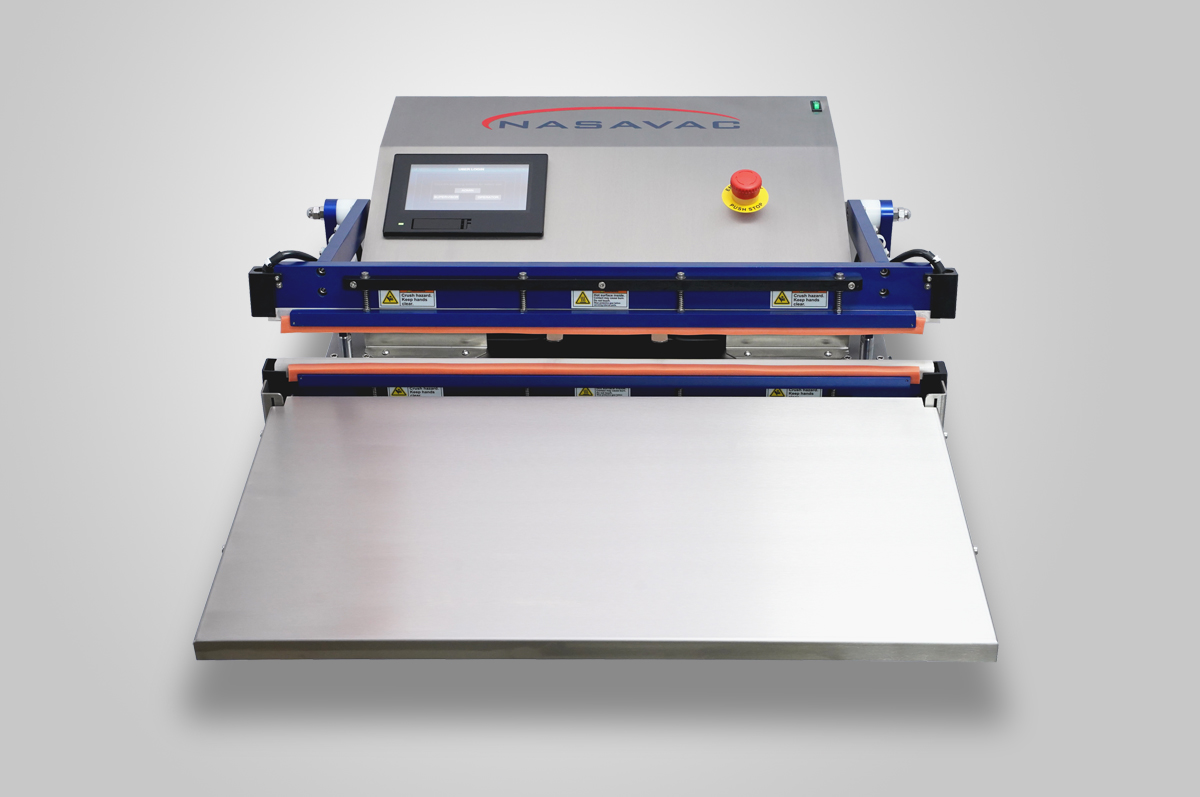

    Columbia Medical Nozzle Type Vacuum Sealer with Working Platform

  • Vacuum Filter

    Vacuum Filter

  • Nozzle Length Extension

    Columbia Vacuum Sealer Nozzles

  • Two-Hand Tie Down System

    Two-Hand Tie Down System

  • Bag Stretcher
  • Utilizing In-House Vacuum and Nitrogen Air Line
  • Temperature Controlled Impulse Sealing System

    Columbia Medical Vacuum Sealer Touch Screen

  • Dry Vacuum Pump
  • Validation System

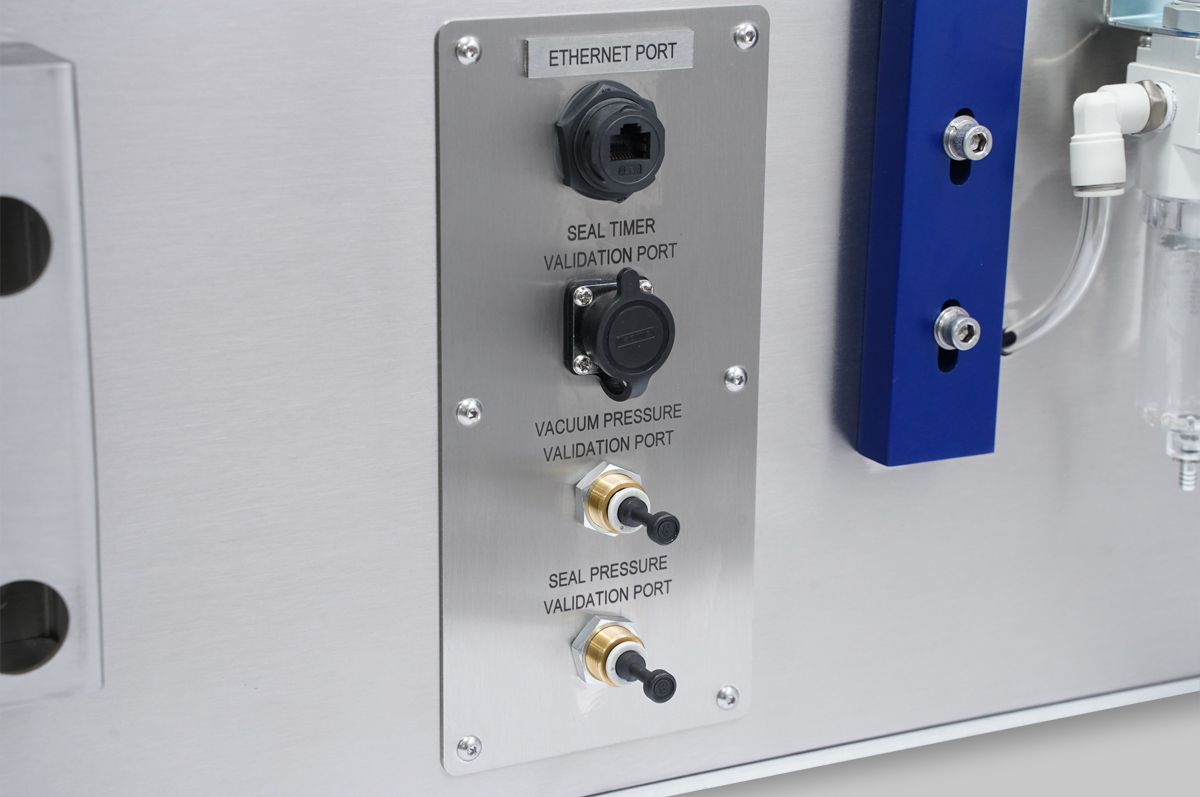

    Columbia Vacuum Sealer Validation Port

  • Vertical Stand

    ETN/ETG Vertical Stand

  • 10mm Sealing Width
  • Other Sealing Length
  • Other Voltage Configuration (220V/240V AC or 100V AC)

Coming soon.
