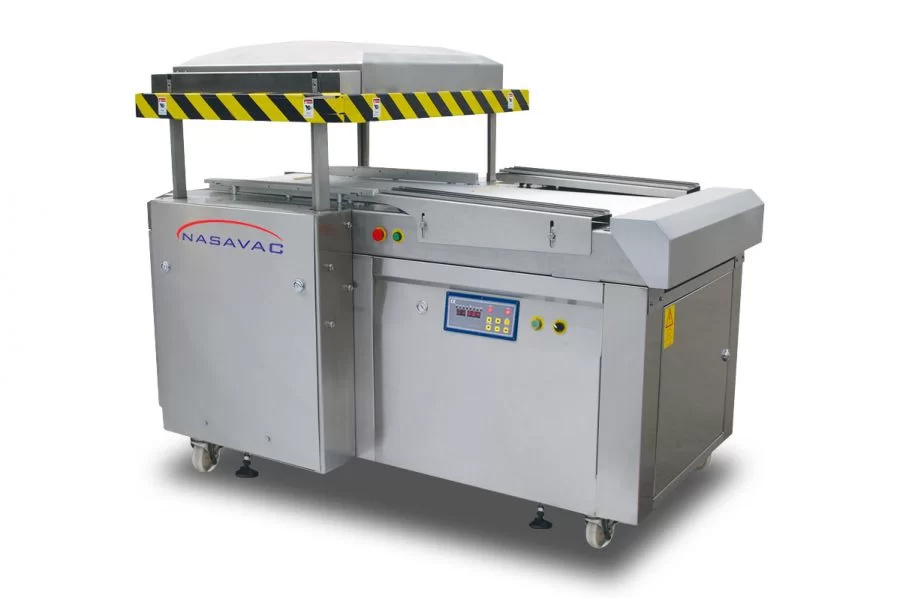

VCS-43

Workhorse Inline Belt Type Vacuum Sealer

Belt type vacuum sealer provides continuous vacuum packaging for applications that require maximum air removal from a bag and the highest production speeds. It is an ideal tool for vacuum packaging of meat products, fresh meat, dairy products and other easily perishable food. It is digitally controlled and fully automatic. The machine cycles through the vacuum and seal process, while an operator loads the next batch of packages to be vacuum sealed. The control system is powered by micro-controller with 20 programmable memory settings.

Features

Stainless steel chassis

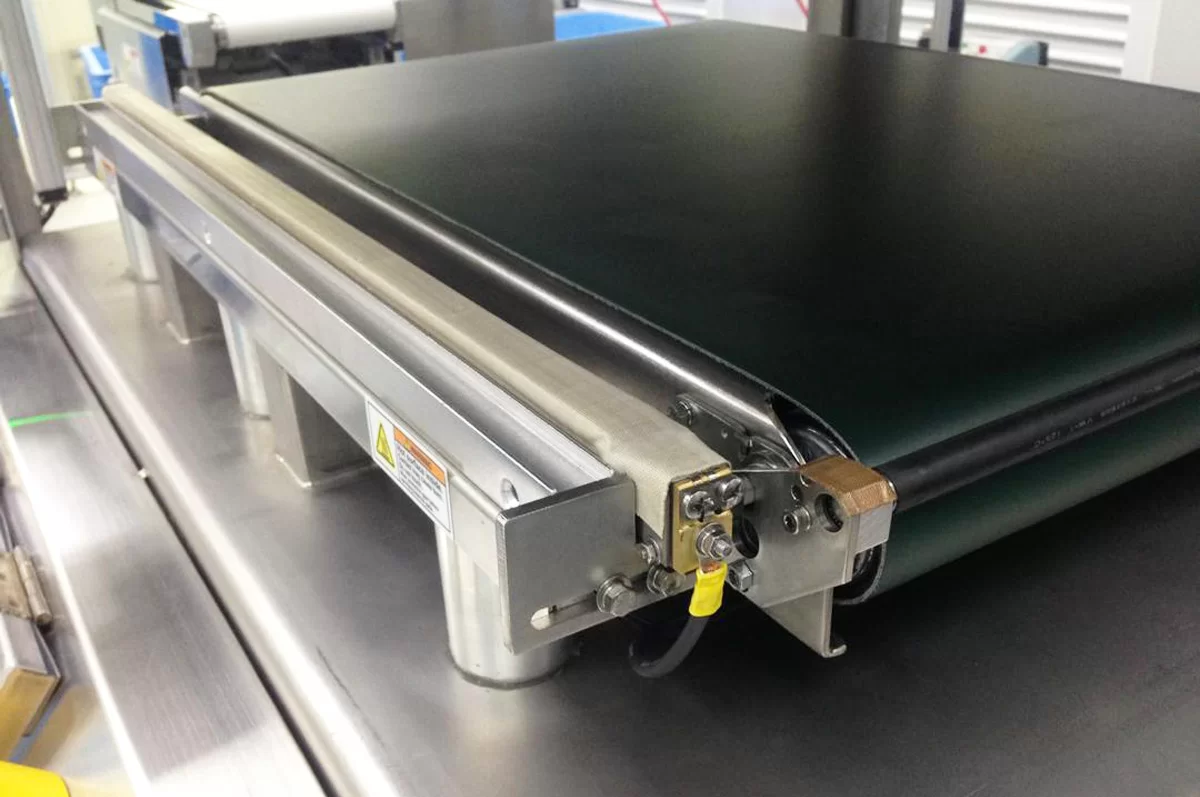

Food grade conveyor belt
Operator friendly chamber safety cover protects operator from injury
High performance impulse sealing system
Aluminum alloy sealing bar with bladder activated sealing
Compact design to suite space constrain production area, small and medium industry

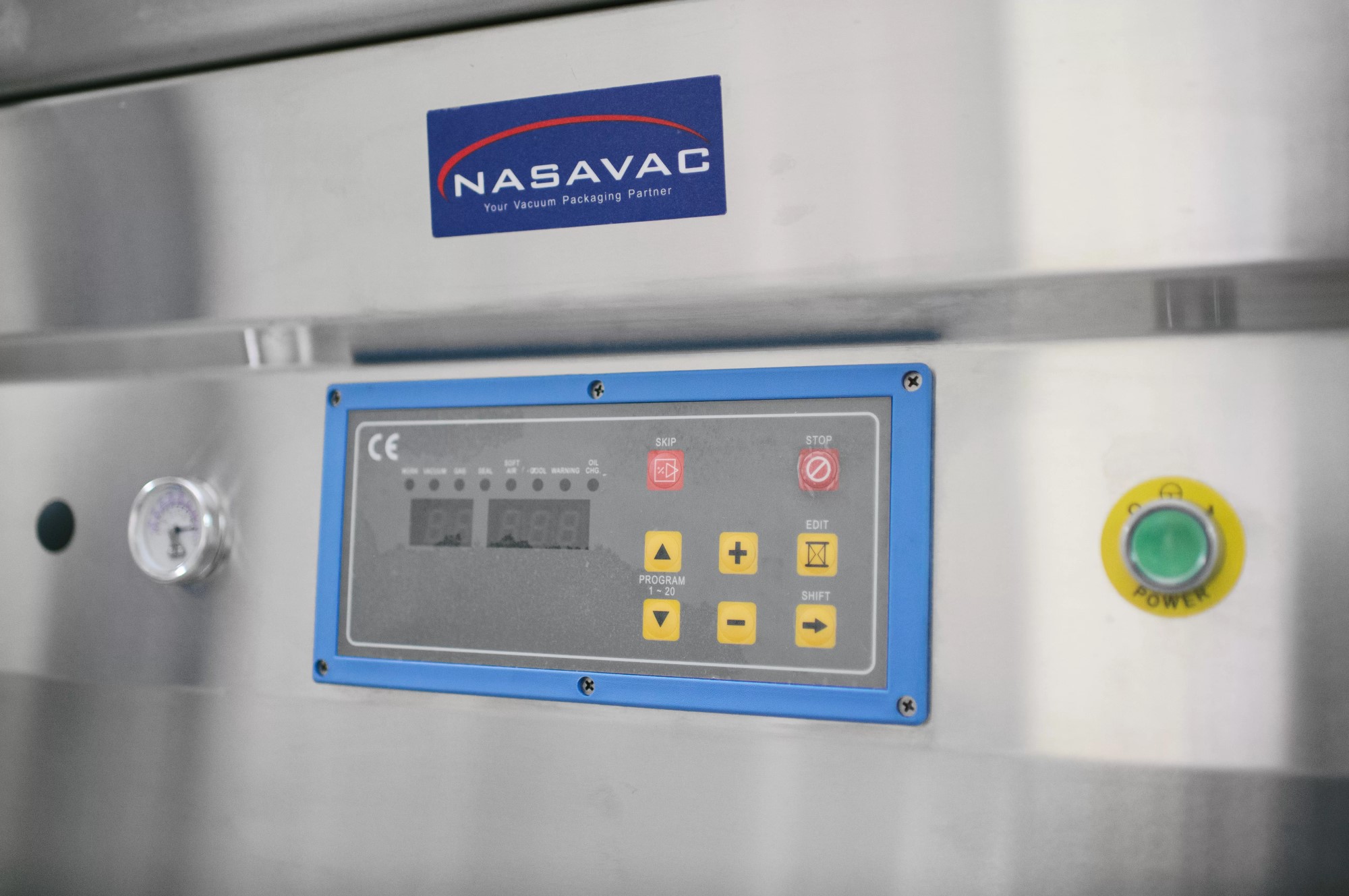

Water resistance control panel (IP-65)

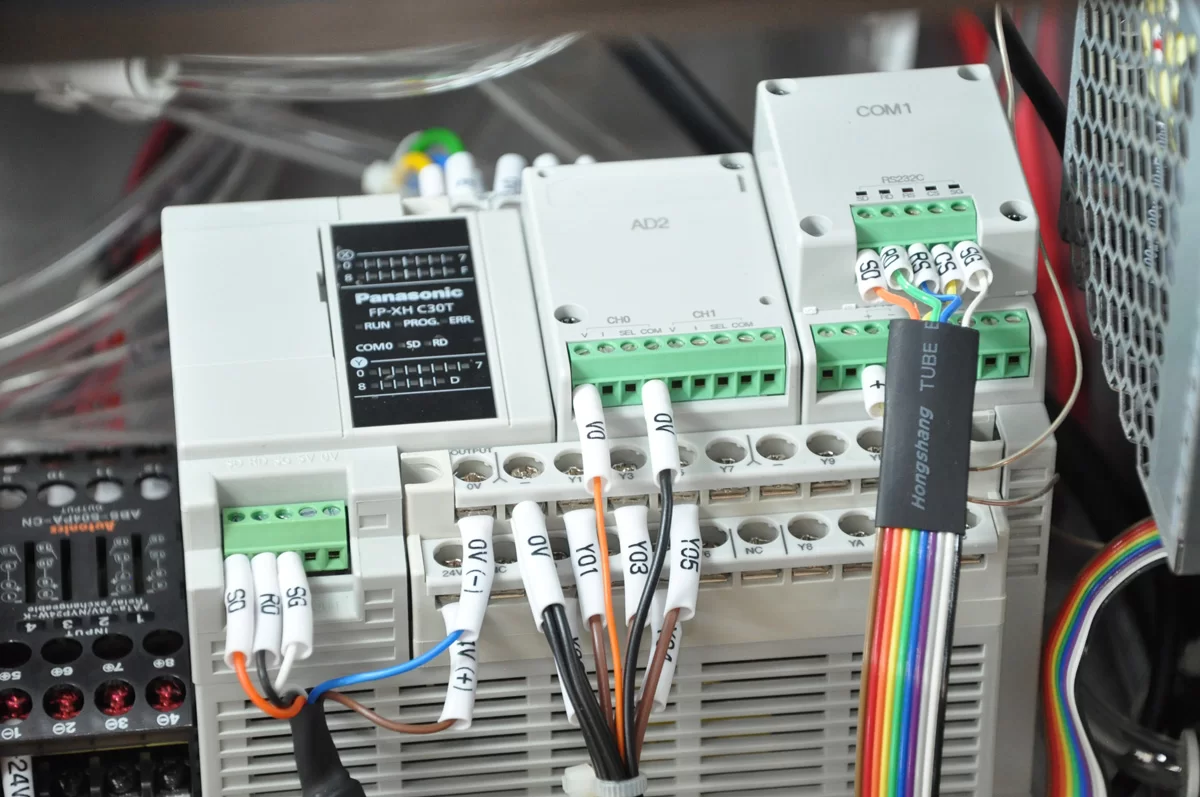

Powered by micro-controller with 20 programmable memory settings
Auto & manual operation mode
Oil change indicator
Emergency reset system
Stainless steel chamber lid
Flat working platform for easy cleaning
Easy sealing element and Teflon tape replacement

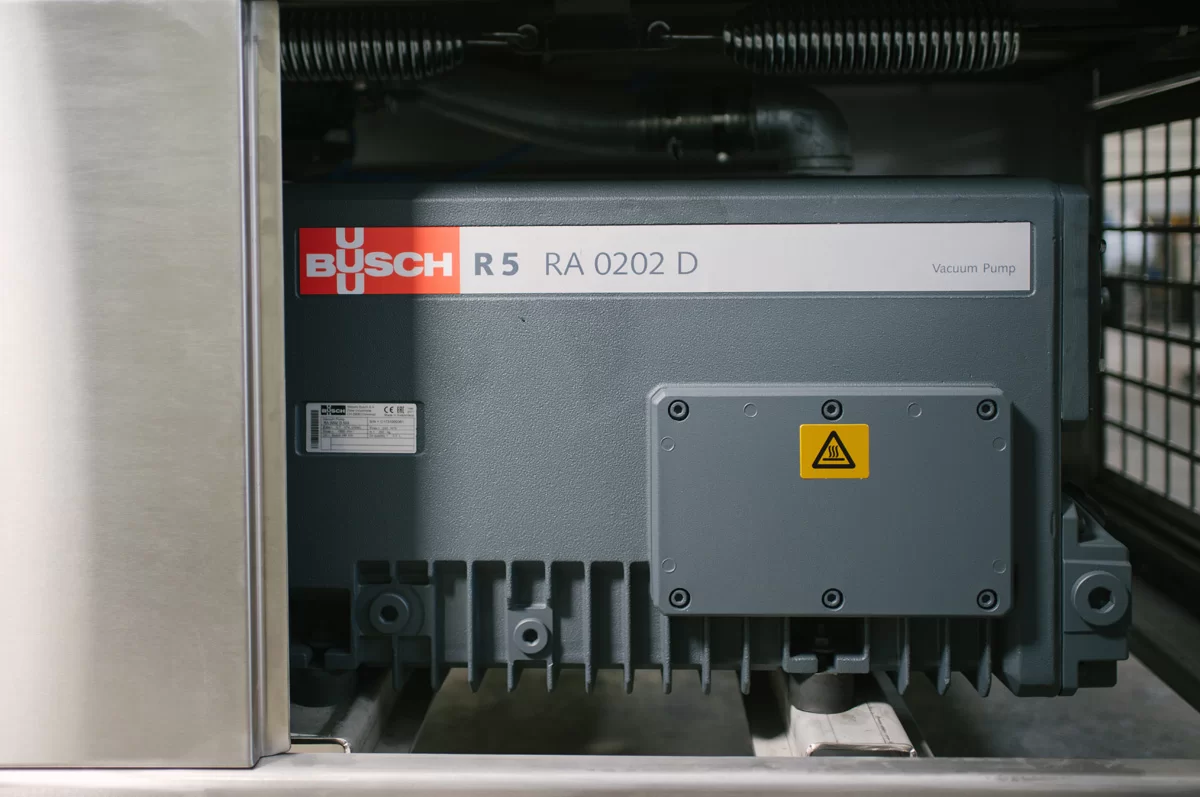

Powered by BUSCH oil lubricated rotary vane vacuum pump

Technical Specifications

Model	VCS-43
Power:	Three Phase AC 220V, 60Hz
Dimensions:	(L) 126″ x (W) 53″ x (H) 52 ½”
Machine Weight:	1984 lb
Chamber Height:	8 ¼” (Effective Depth = 8″)
Chamber Dimension:	(L) 43 ¼” x (W) 30 ½” x (H) 8″
Sealing Bar Configuration:	Front & Back: Seal Bar Distance = 30 ½”
Sealing Length:	Front & Back Configuration: 43 ¼”
Sealing Width:	6mm (Double Beam)
Maximum Vacuum:	-29 inHg
Vacuum:	202m³/H BUSCH Oil Lubricated Rotary Vane Vacuum Pump
