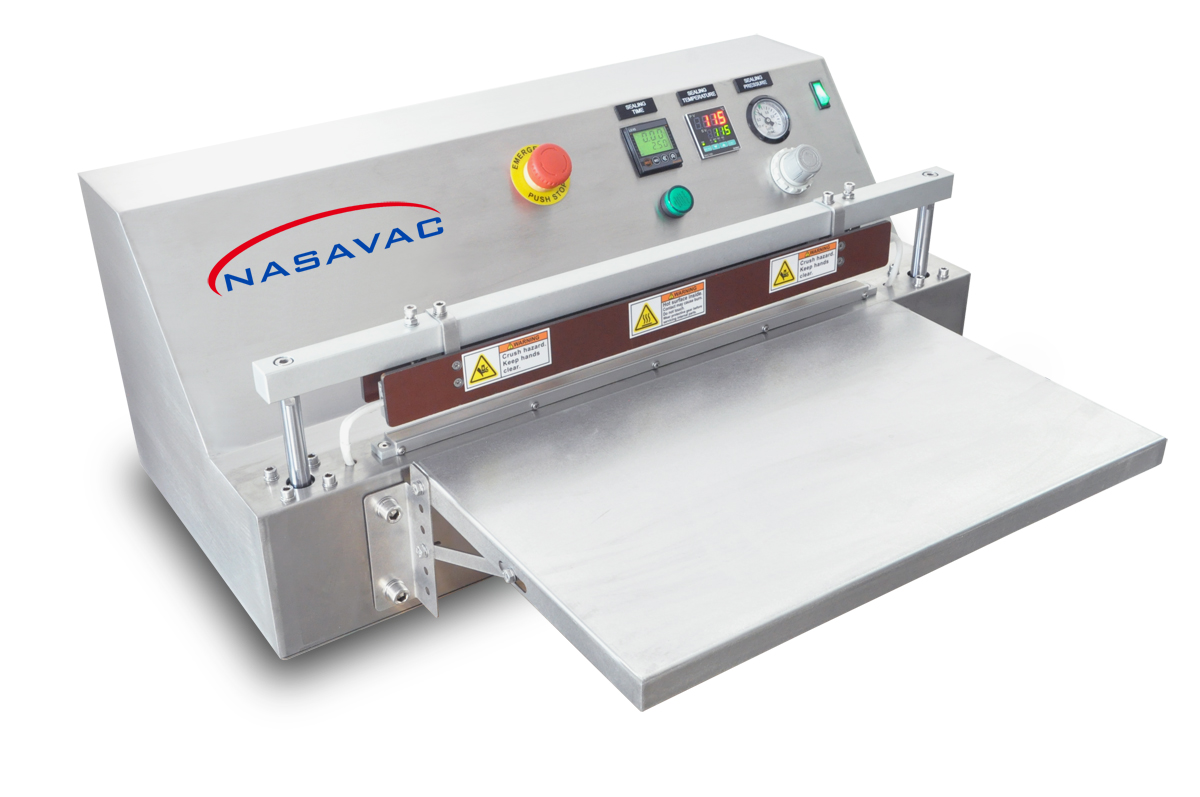

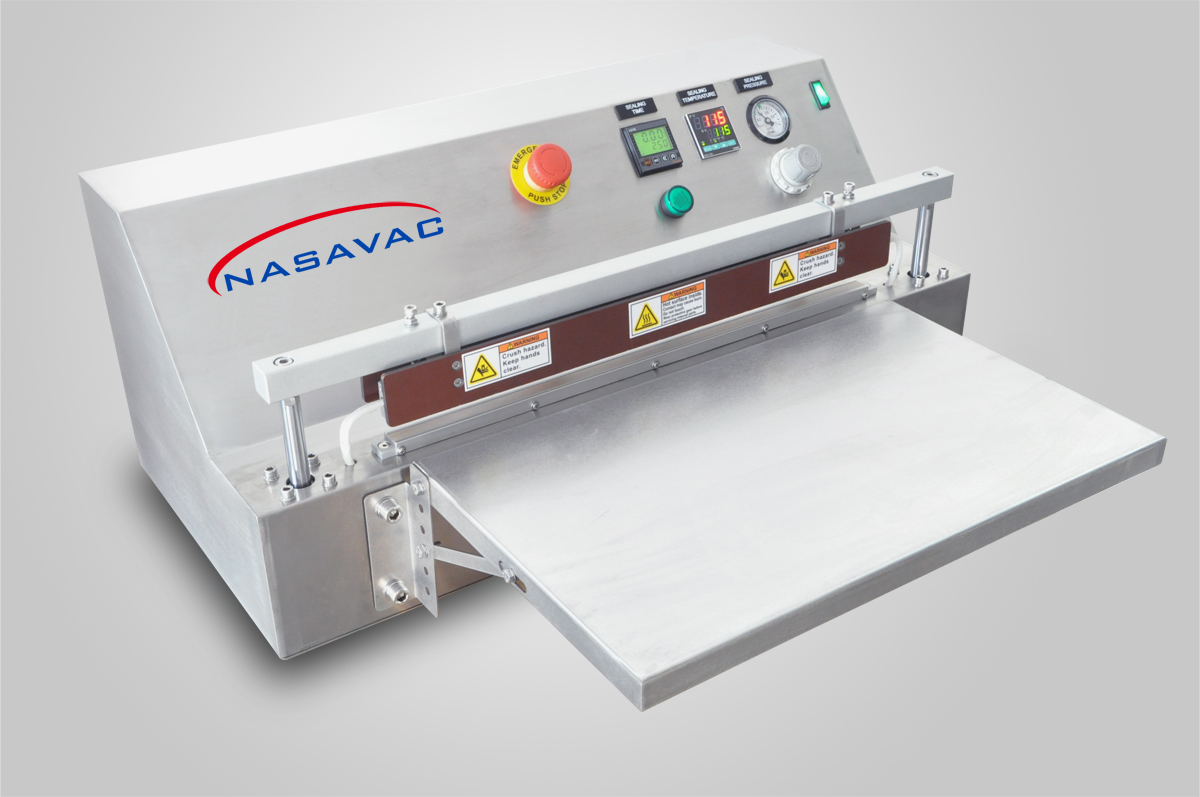

MPD Series

Validatable Medical Constant Heat Sealer

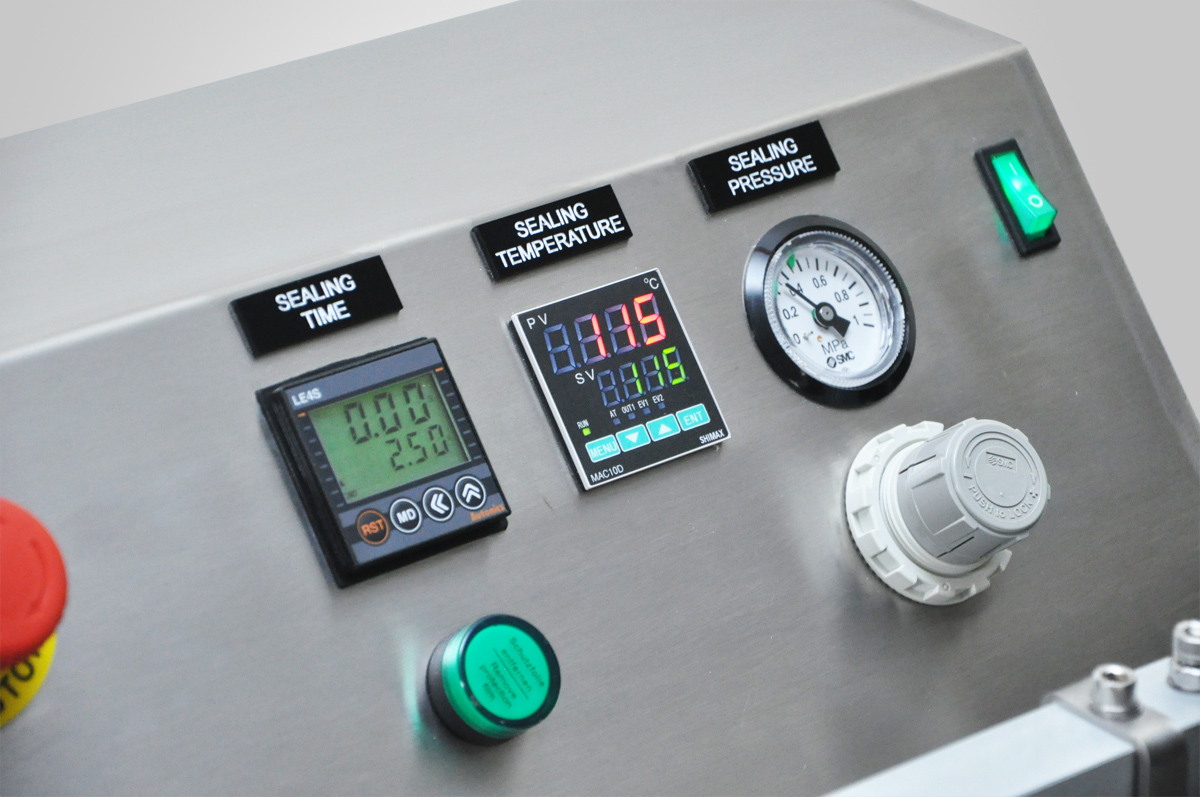

MPD series validatable medical constant heat sealer is pneumatically operated and available in 20″, 25″ and 30″ sealing length. A sealing timer, temperature controller and sealing pressure regulator ensure precise control over the amount of seal time, seal temperature and seal pressure are applied to medical pouch. It is built with external verification ports for ease of calibration.

With an outstanding PID controlled constant heat sealing system, you can have confidence in sealing a wide range of materials such as Tyvek® medical microbial barrier pouch and laminated films.

MPT Validation — External Validation Port

FEATURES

Compatible for cleanroom application
Works well with all popular microbial medical pouch & moisture barrier bag materials
Stainless steel 304 chassis
Digital sealing temperature controller with PID control
Digital seal timer for precision sealing
Industrial 4.0 ready
Adjustable seal pressure
Object / Finger anti-pinch safety system
Built-in emergency stop push button
Easy set-up requires only compressed air, standard electrical outlet
External validation port for seal temperature, seal pressure and seal time
Electronic foot pedal switch activated

TECHNICAL SPECIFICATIONS

Model	MPD-200	MPD-250	MPD-300
Power:	Single Phase AC 110V, 60Hz
Air Requirement:	82 PSI @ 5 cfm
Dimensions:	(L) 21 ¾” x (W) 13 ¾” x (H) 12 ¼”	(L) 26 ¾” x (W) 13 ¾” x (H) 12 ¼”	(L) 31 ¾” x (W) 13 ¾” x (H) 12 ¼”
Seal Dimension:	(L) 20″ x (W) 10mm	(L) 25″ x (W) 10mm	(L) 30″ x (W) 10mm
Power Rating:	500 Watt	700 Watt	900 Watt
Control System:	Digital Timer & Temperature Controller
Sealing System:	Constant Heat System
Validation Port:	Seal Temperature, Seal Pressure, Seal Time
