EDG Series

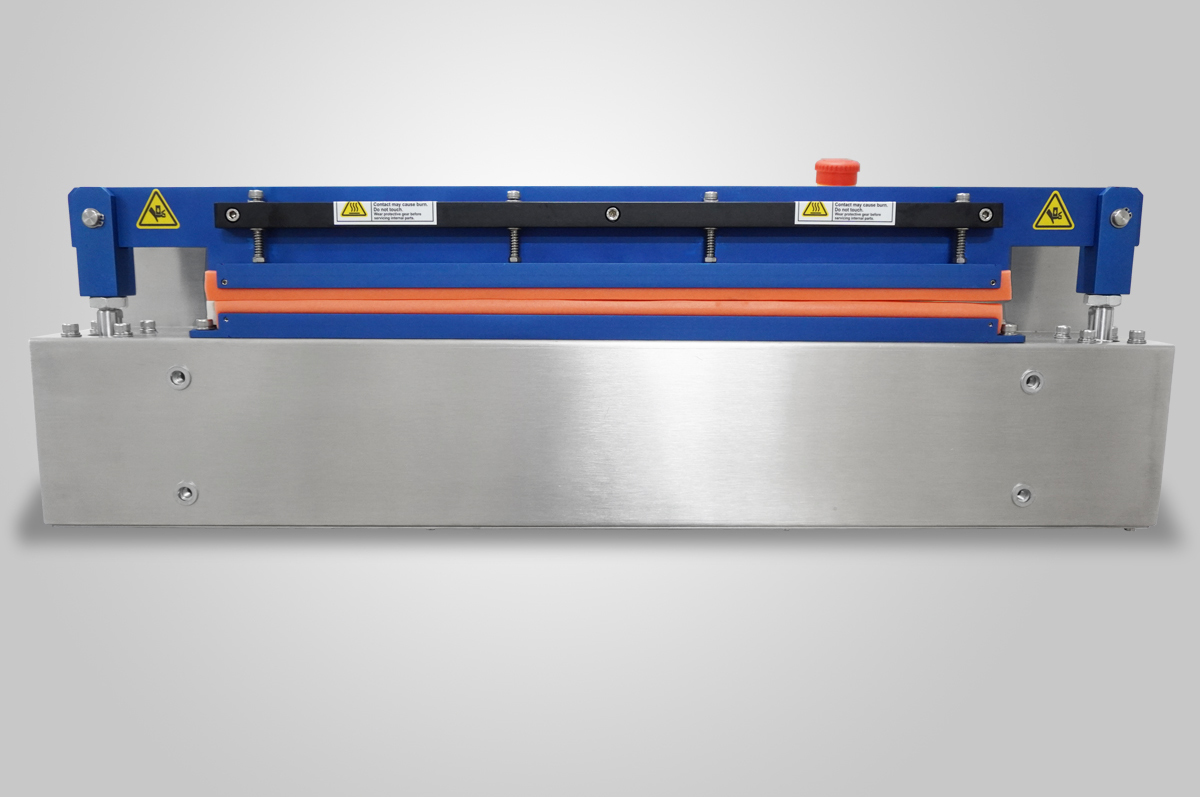

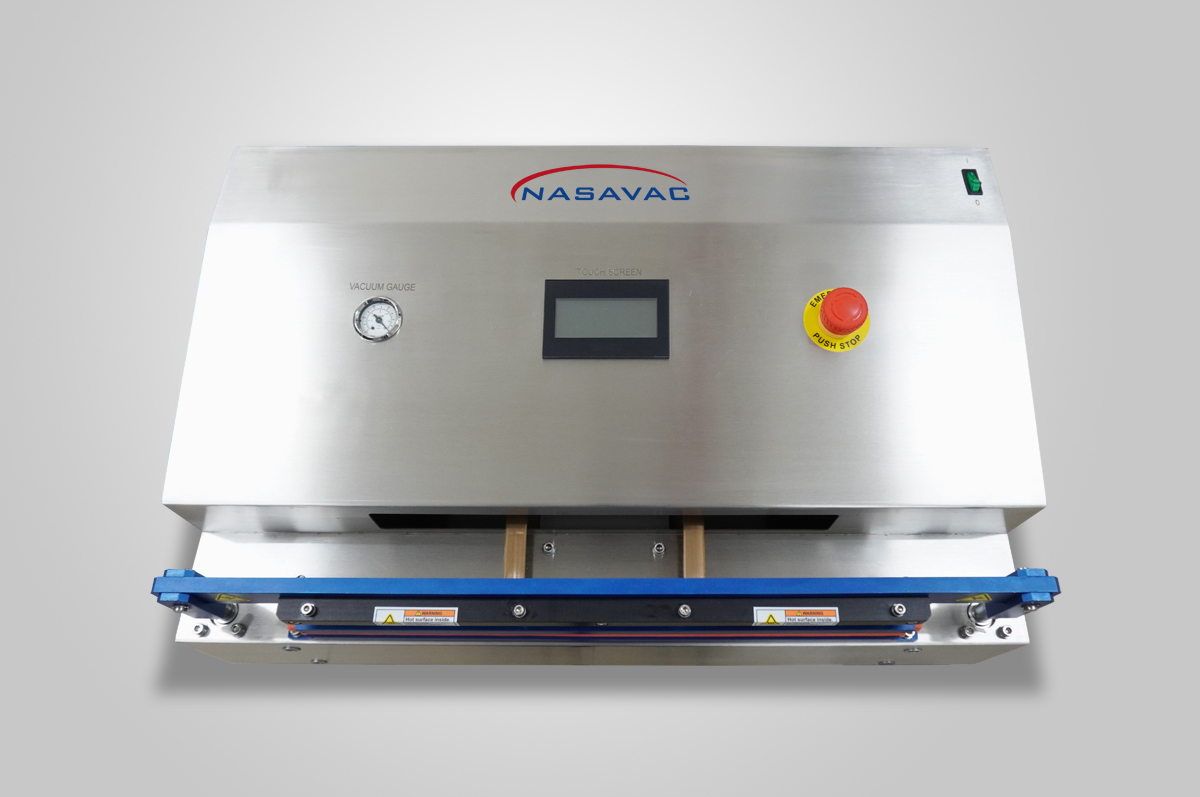

Nozzle Type Vacuum Sealer with gas Purging

EDG series nozzle type vacuum sealer with built in gas purging function is designed for moderate duty usage. The EDG series is easy to operate and practically maintenance free. Built-in with stainless steel twin nozzles that create high flow vacuum and gas purging. It seals all popular moisture barrier bag materials and anti-static pouches from 20” to 35” (bag opening length).

  • Compatible for cleanroom application
  • Stainless steel chassis
  • High flow stainless steel retractable twin nozzles
  • Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
  • Object / Finger anti-pinch safety system
  • Built-in emergency stop push button

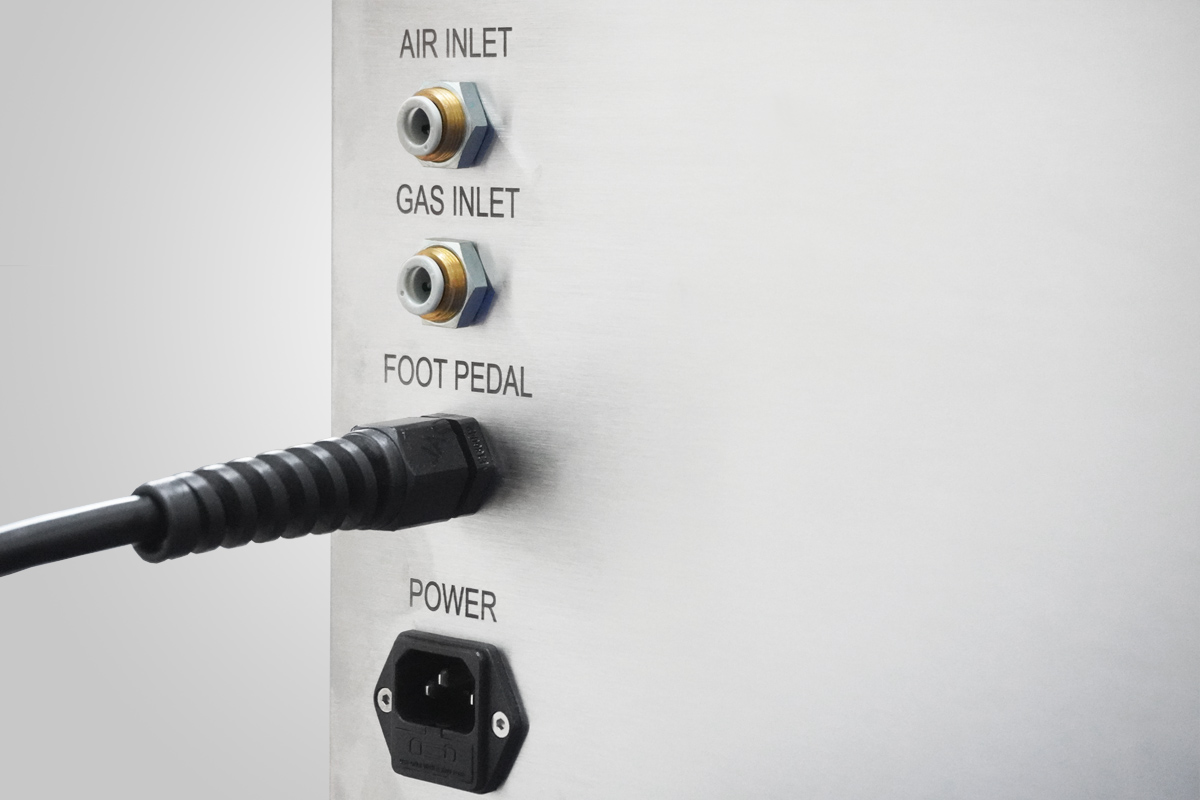

  • Easy set-up requires only compressed air, gas, standard electrical outlet

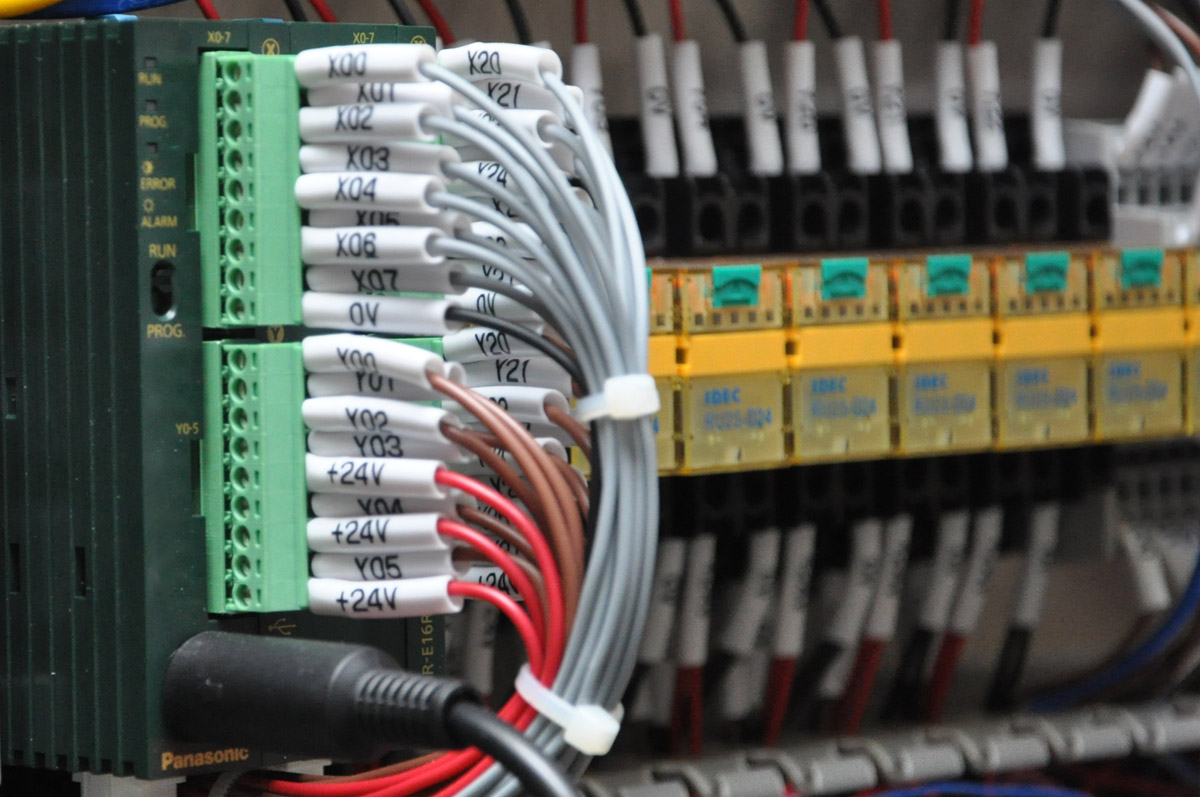

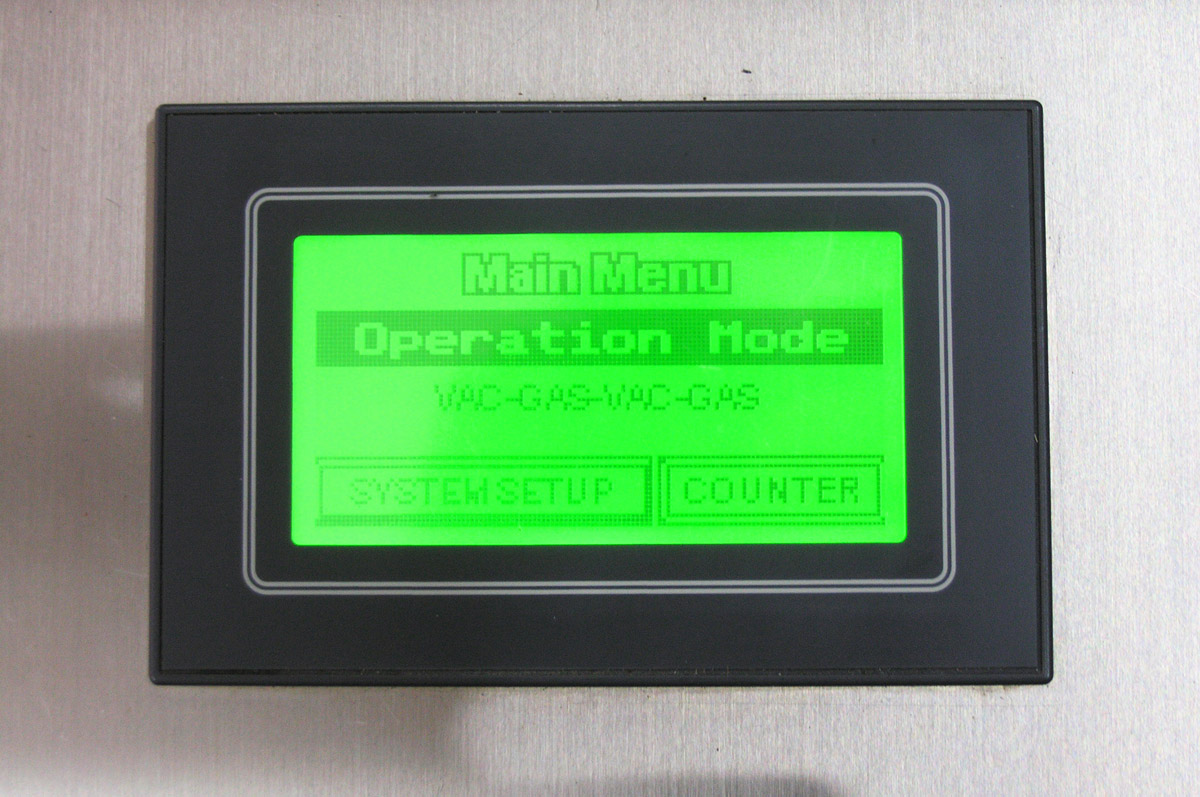

  • PLC Control & touch screen (HMI) system
  • 10 programmable memory for vacuum time, gas time, heat time and cool time settings
  • Password protection for setup page
  • 5 operation modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac & Seal Only
  • Multiple cycles of gas purging operation (1 to 10 cycles)
  • Sealing only mode without nozzles extend
  • Packing counter for production monitoring
  • Visible and audible alarm

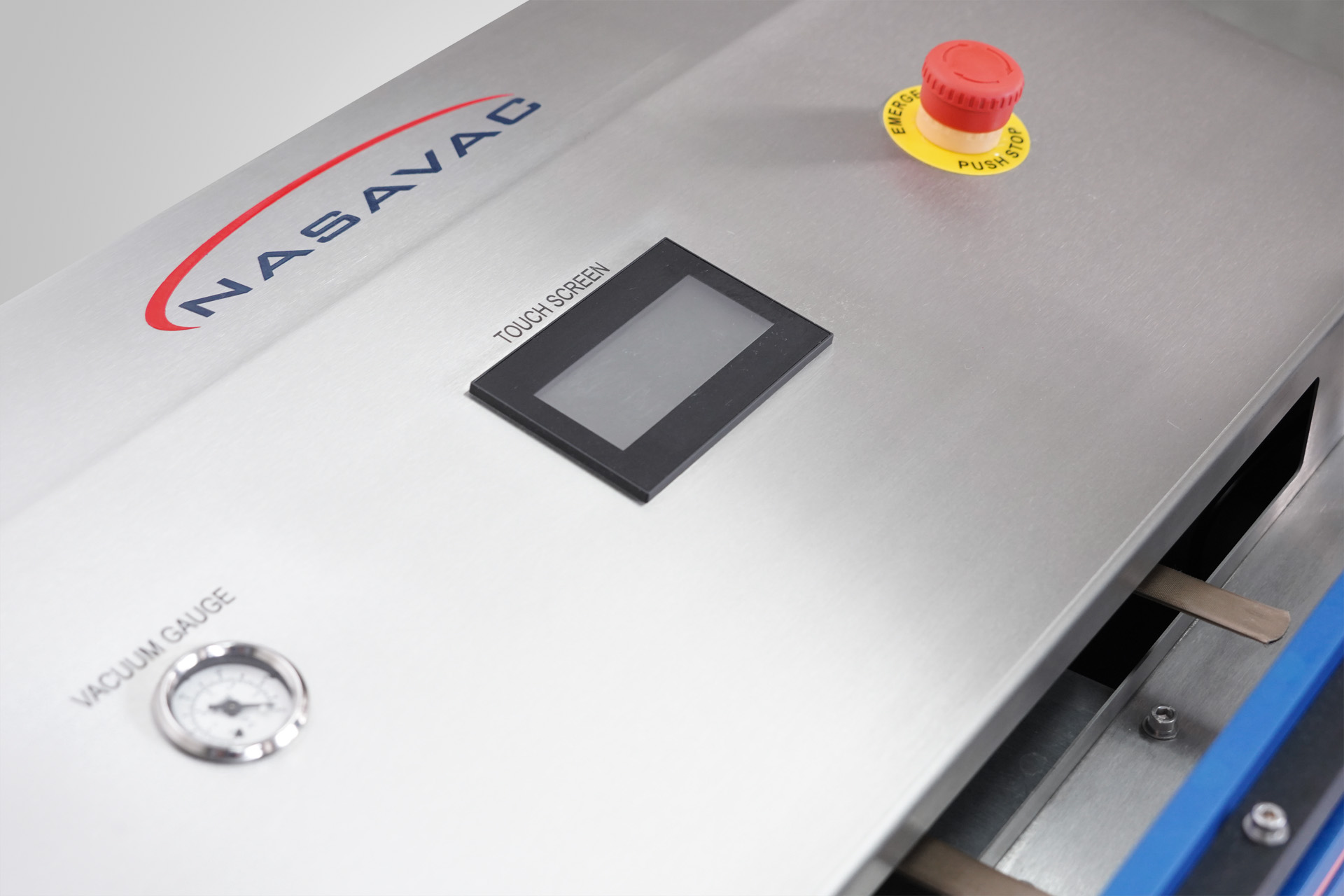

  • Vacuum gauge
  • High performance impulse sealing system
  • Electronic foot pedal switch activated
ModelEDG-200EDG-250
Power:
Single Phase AC 110V, 60Hz
Air Requirement:
87 PSI @ 5 cfm
Gas:
Flow: 5.85 cfm, Pressure: 60 PSI (Max), Nitrogen (N2), Argon (Ar) or Carbon Dioxide (CO2)
Dimensions:(L) 30″ x (W) 15.75″ x (H) 8.85″(L) 35″ x (W) 15.75″ x (H) 8.85″
Seal Dimension:(L) 20″ x (W) 8mm(L) 25″ x (W) 8mm
Operation Mode:
5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac, & Seal Only
Vacuum:
Flow: 2.94 cfm, Pressure: -26 inHg (Max), Vacuum Ejector Pump
ModelEDG-300EDG-350
Power:
Single Phase AC 110V, 60Hz
Air Requirement:
87 PSI @ 5 cfm
Gas:
Flow: 5.85 cfm, Pressure: 60 PSI (Max), Nitrogen (N2), Argon (Ar) or Carbon Dioxide (CO2)
Dimensions:(L) 40″ x (W) 15.75″ x (H) 8.85″(L) 45″ x (W) 15.75″ x (H) 8.85″
Seal Dimension:(L) 30″ x (W) 8mm(L) 35″ x (W) 8mm
Operation Mode:
5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac, & Seal Only
Vacuum:
Flow: 2.94 cfm, Pressure: -26 inHg (Max), Vacuum Ejector Pump
  • Stainless Steel Working Platform

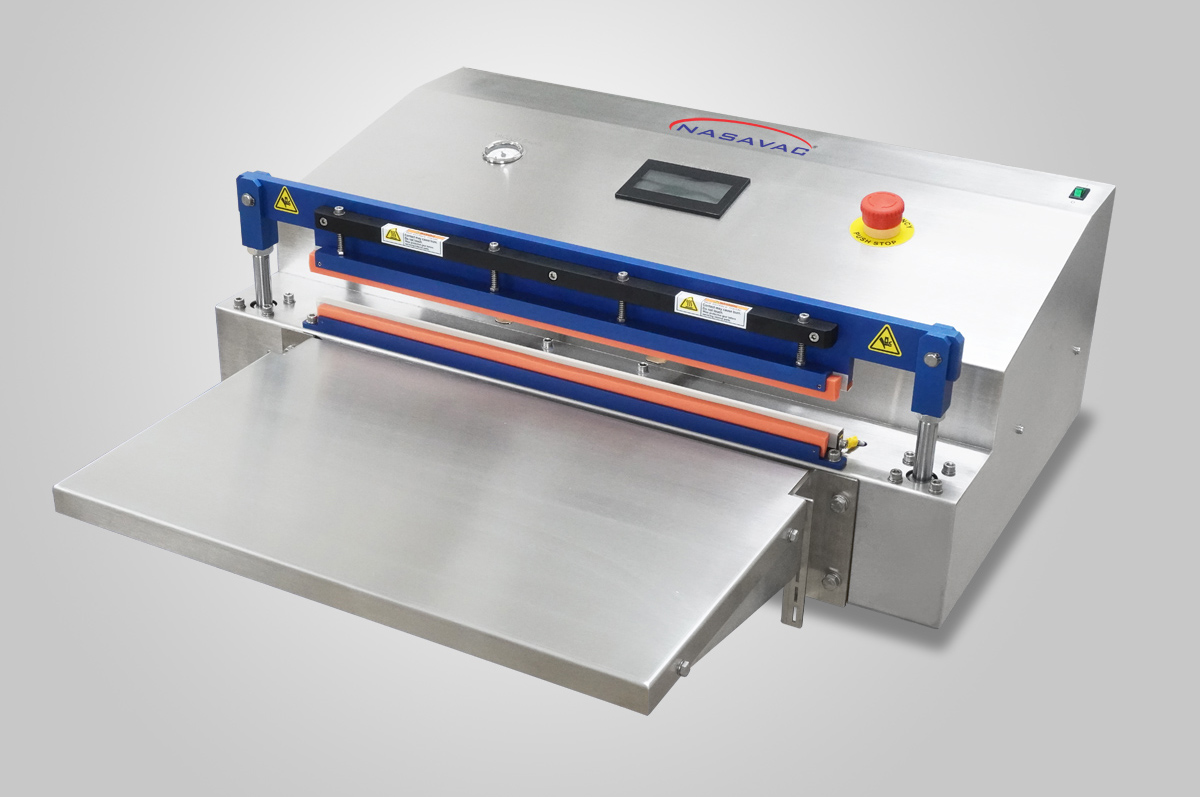

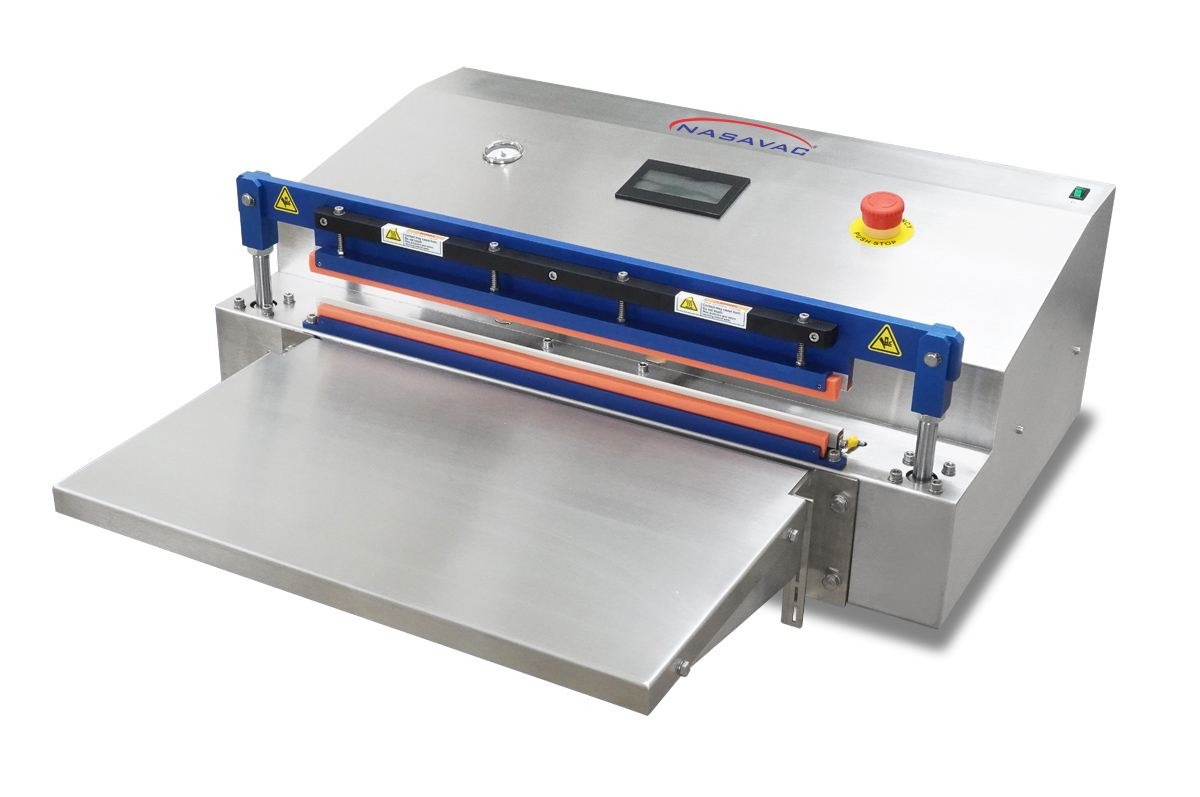

    EDG Series Stainless Working Platform

  • Vacuum Filter

    Vacuum Filter

  • Nozzle Length Extension
  • Vacuum Pressure Control Option

    Digital Vacuum Sensor

  • Two-Hand Tie Down System

    Two-Hand Tie Down System

  • Bag Stretcher
  • Utilizing In-House Vacuum and Nitrogen Air Line
  • Dry Vacuum Pump
  • Vertical Stand
  • 10mm Sealing Width
  • Other Voltage Configuration (220V/240V AC or 100V AC)
GLOVES VACUUM PACK

Wafer Container / SHIPPER JAR

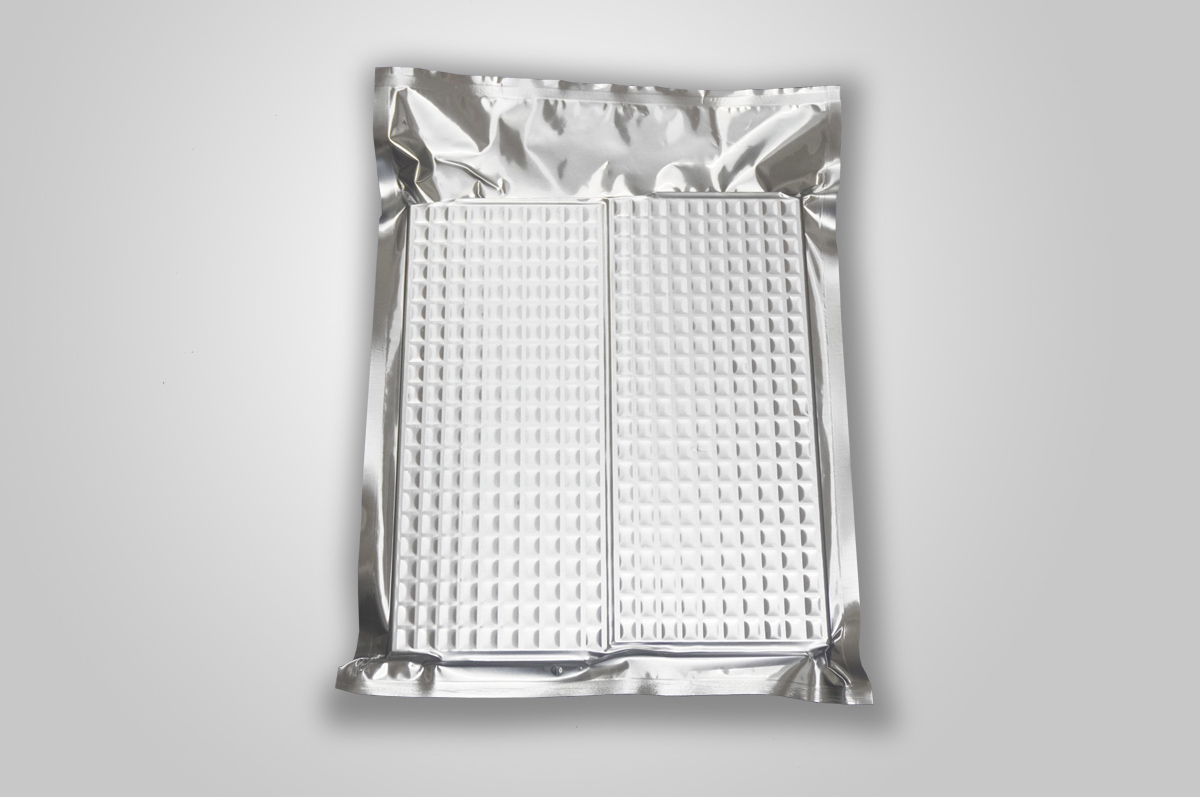

IC Tray VACUUM PACK

TAPE & REEL VACUUM PACK

SEALING ONLY WITH NOZZLE EXTENDED MODE
