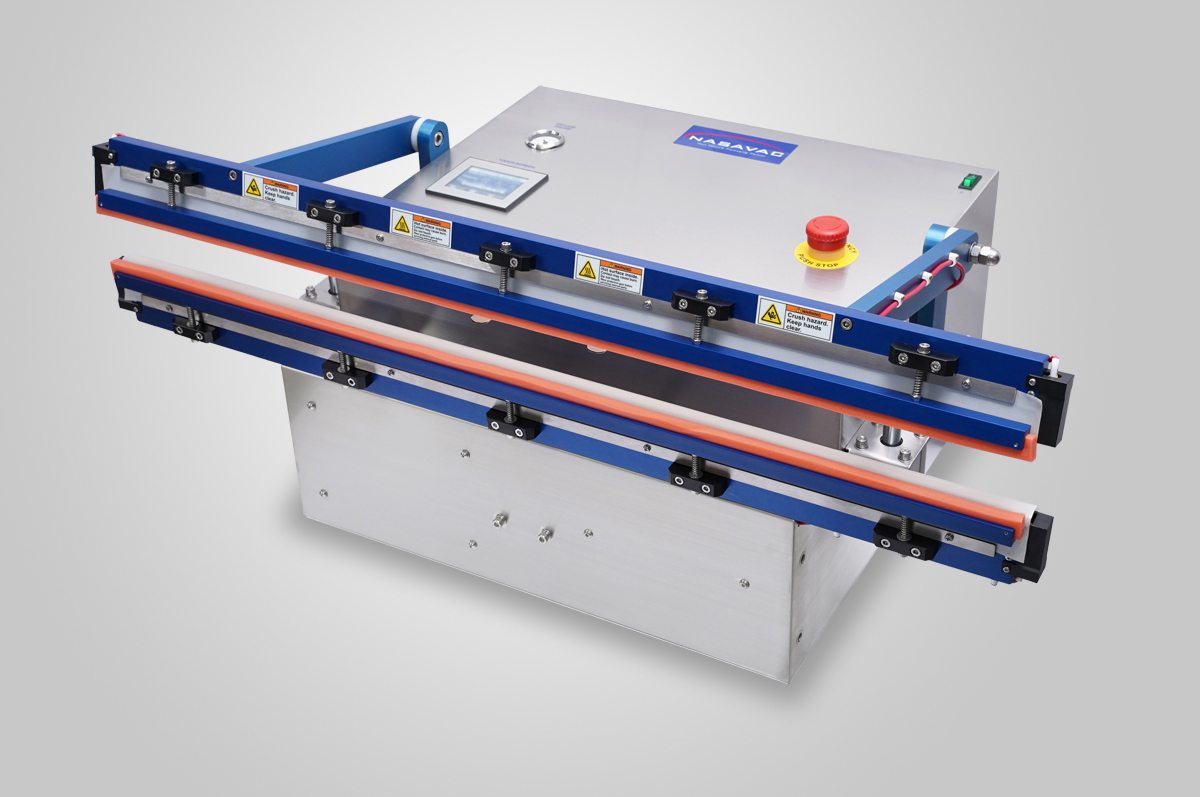

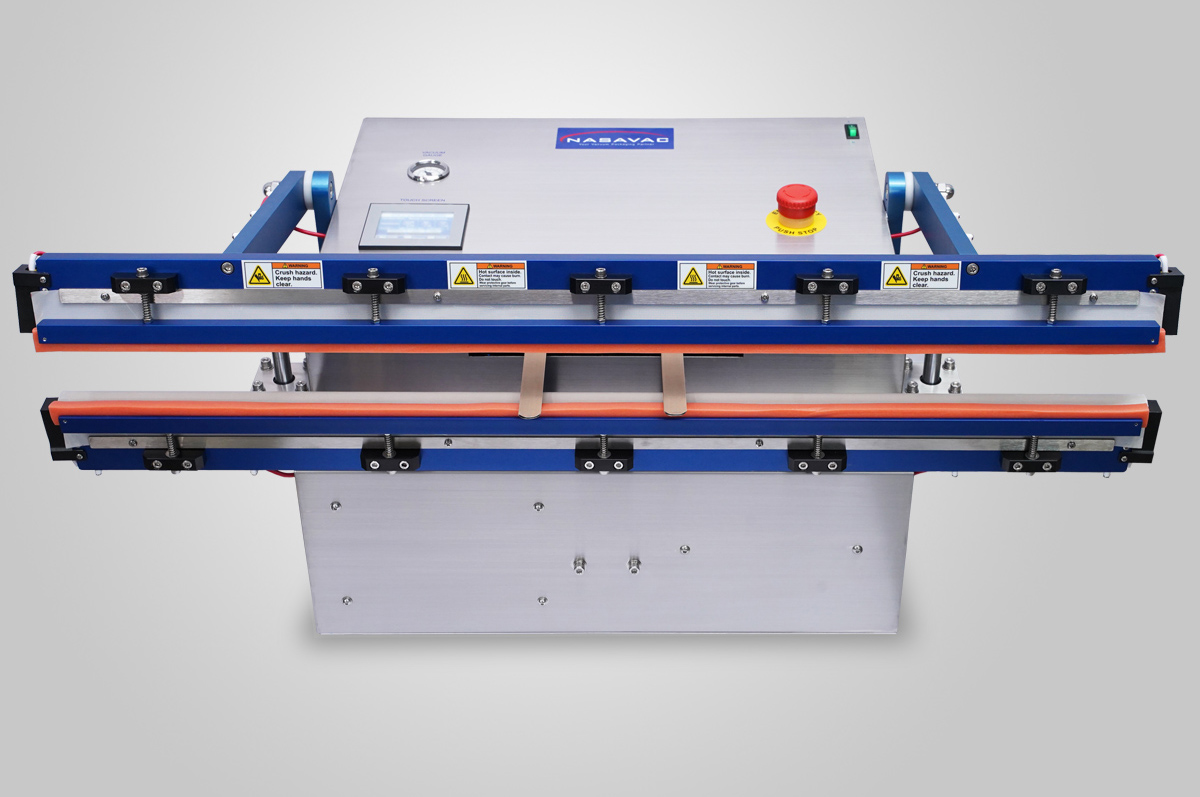

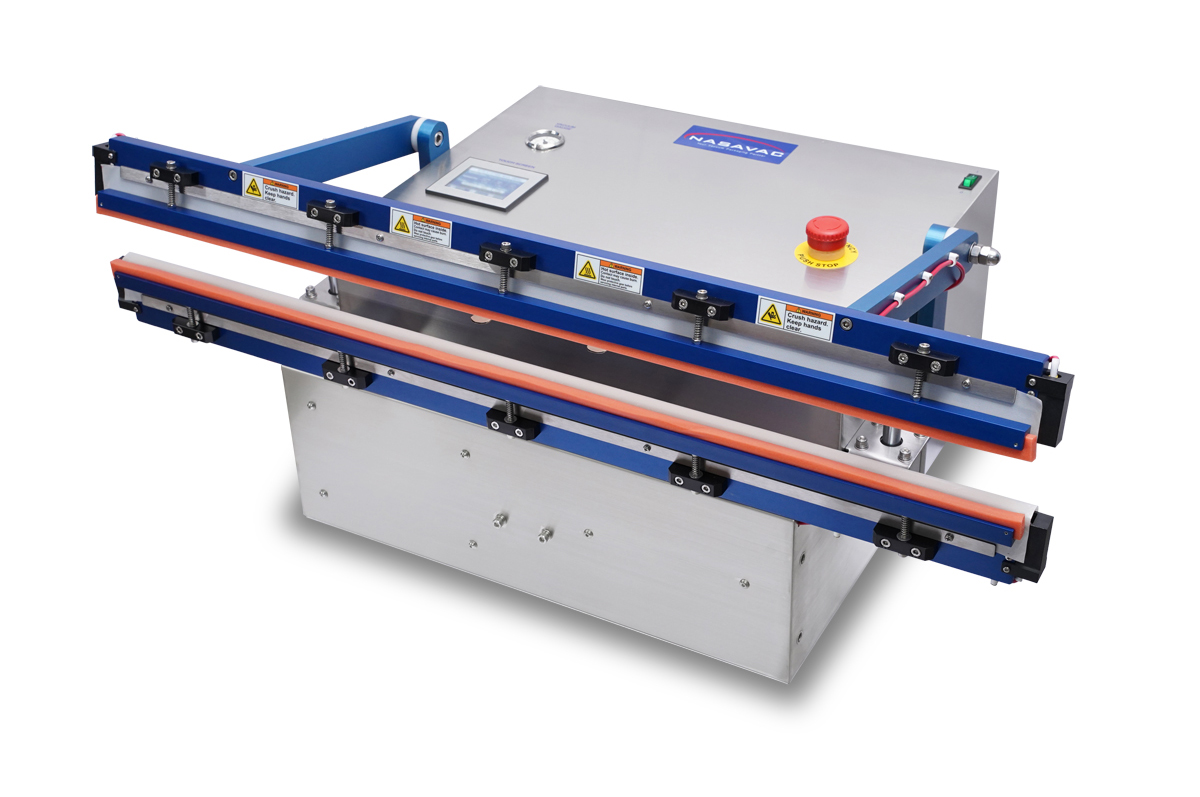

ETN Series

High Performance Nozzle Type Vacuum Sealer

ETN series stainless steel vacuum sealer is engineered for heavy duty usage. It’s control system is powered by PLC controller and color touchscreen (HMI) for precise settings and user-friendly operations. The entire body is constructed with stainless steel to suite semiconductor, medical cleanroom standard and food industry requirements. Twin nozzles and high capacity vacuum ejector pump create high flow of vacuum suction. The Bi-Active impulse sealing system (top & bottom heating) seals all popular moisture barrier bag materials and anti-static pouches from 30” to 40” (bag opening length).

  • Compatible for cleanroom application
  • Stainless steel chassis
  • High flow stainless steel retractable twin nozzles
  • Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
  • Object / Finger anti-pinch safety system
  • Built-in emergency stop push button
  • Easy set-up requires only compressed air, standard electrical outlet
  • PLC control & touch xcreen (HMI) system
  • 10 programmable memory for vacuum time, gas time, heat time and cool time settings
  • Password protection for setup page
  • 3 operation modes: Auto Vacuum Timer, Manual Vacuum & Seal Only
  • Sealing only mode without nozzles extend
  • Packing counter for production monitoring
  • Visible and audible alarm
  • Vacuum gauge
  • High performance Bi-Active impulse sealing system (top & bottom heating type)
  • Electronic foot pedal switch activated
ModelETN-30ETN-32
Power:
Single Phase AC 110V, 60Hz
Air Requirement:
87 PSI @ 5 cfm
Dimensions:(L) 30.5″ x (W) 20″ x (H) 13.5″(L) 32.5″ x (W) 20″ x (H) 13.5″
Seal Dimension:(L) 30″ x (W) 8mm(L) 32″ x (W) 8mm
Operation Mode:
3 Operation Modes: Auto Vacuum Timer, Manual Vacuum & Seal Only
Vacuum:
Flow: 12.94 cfm, Pressure: -27 inHg (Max), Vacuum Ejector Pump
ModelETN-36ETN-40
Power:
Single Phase AC 110V, 60Hz
Air Requirement:
87 PSI @ 5 cfm
Dimensions:(L) 36.5″ x (W) 20″ x (H) 13.5″(L) 40.5″ x (W) 20″ x (H) 13.5″
Seal Dimension:(L) 36″ x (W) 8mm(L) 40″ x (W) 8mm
Operation Mode:
3 Operation Modes: Auto Vacuum Timer, Manual Vacuum & Seal Only
Vacuum:
Flow: 12.94 cfm, Pressure: -27 inHg (Max), Vacuum Ejector Pump
  • Stainless Steel Working Platform

    Stainless Steel Working Platform

  • Vacuum Filter

    Vacuum Filter

  • Nozzle Length Extension
  • Vacuum Pressure Control Option

    Vacuum Sensor

  • Two-Hand Tie Down System

    Two-Hand Tie Down System

  • Bag Stretcher
  • Utilizing In-House Vacuum and Nitrogen Air Line
  • Temperature Controlled Impulse Sealing System
  • Dry Vacuum Pump
  • Validation System

    Validation System

  • Vertical Stand

    ETN/ETG Vertical Stand

  • 10mm Sealing Width
  • Other Sealing Length

    Long Seal Jaw

  • Other Voltage Configuration (220V/240V AC or 100V AC)
Tape & Reel Vacuum Pack Sealing Only Mode Without Nozzle Extended FOUP Silicon Wafer Container Vacuum Pack Vacuum Pressure Control System Vacuum Pressure Control System Emmental Cheese Vacuum Pack
