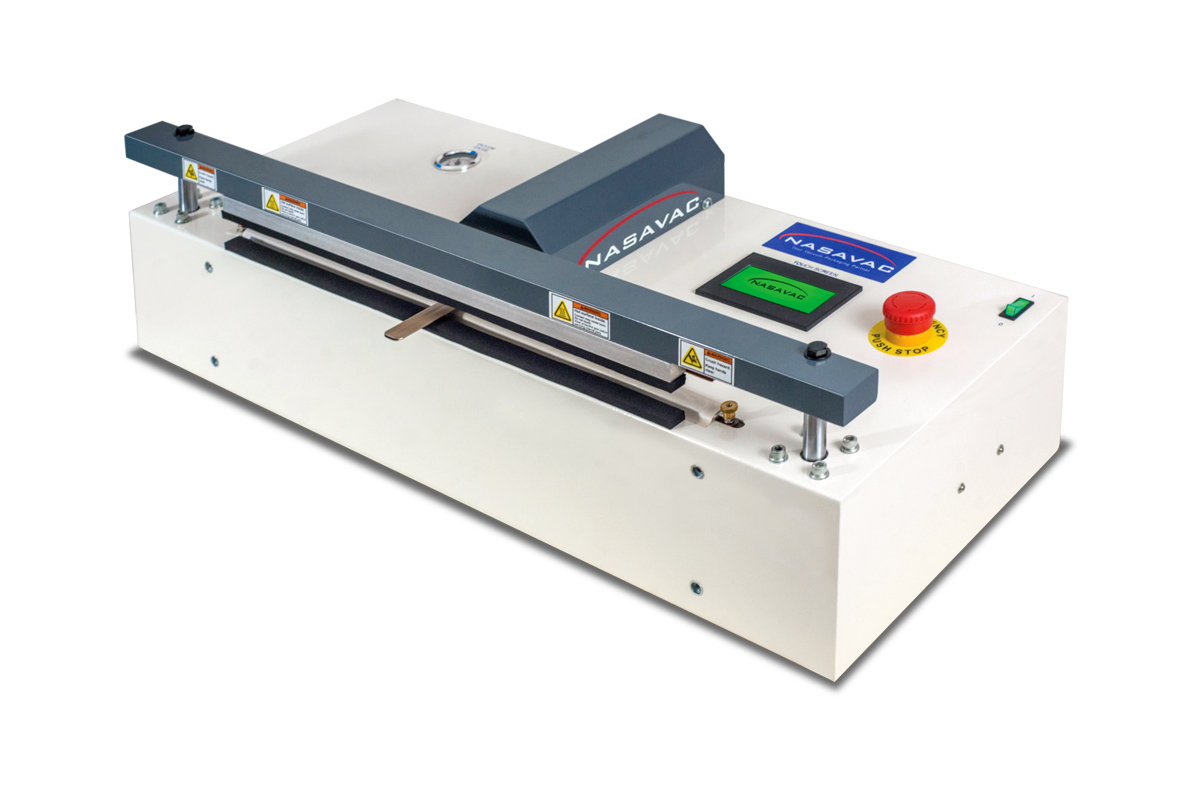

Discover Series VG-Model

Advance Entry Level Nozzle Type Vacuum Sealer with Gas Purging

Discover series nozzle type vacuum sealer is a total solution for vacuum packaging applications. It can handle sealing, vacuum sealing (V model) and modified atmosphere packaging (VG model). The Discover series is easy to operate and practically maintenance free. It seals all popular moisture barrier bag materials and anti-static pouches from 20” to 30” (bag opening length).

  • Compatible for cleanroom application

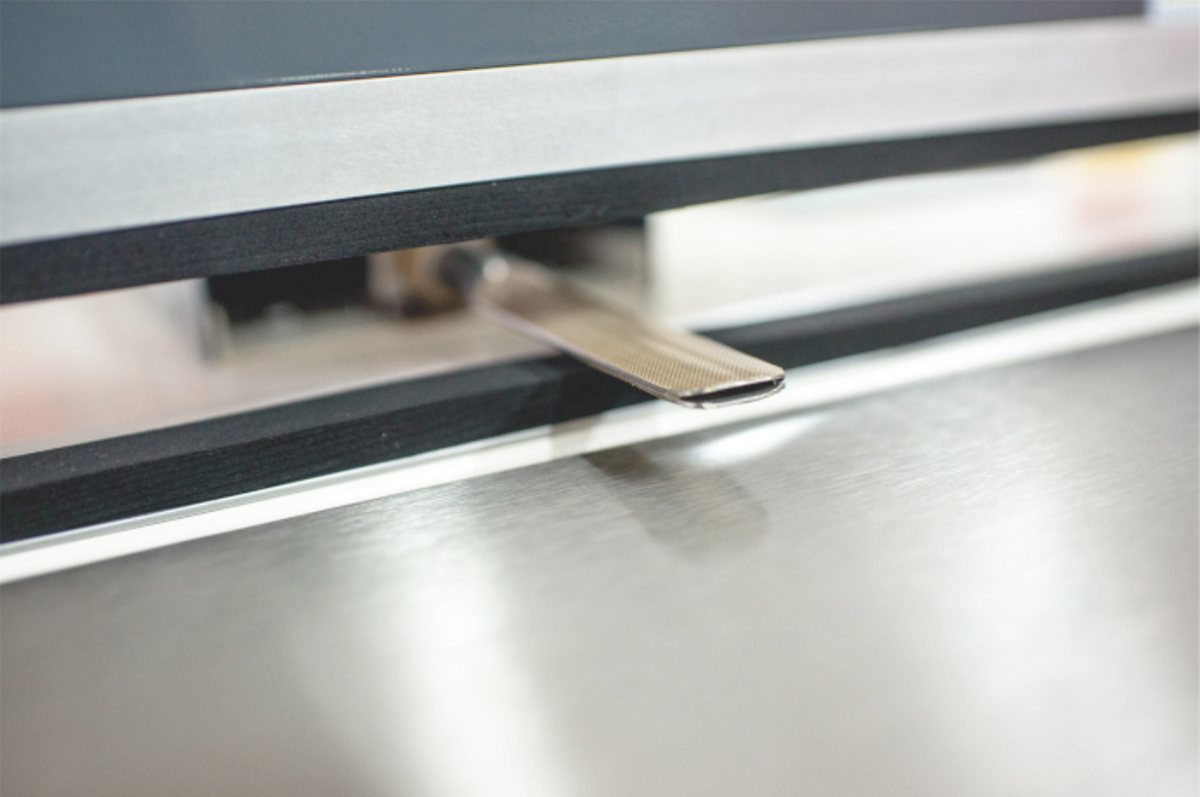

  • High flow stainless steel retractable nozzle
  • Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
  • Object / Finger anti-pinch safety system
  • Built-in emergency stop push button
  • Easy set-up requires only compressed air, gas, standard electrical outlet

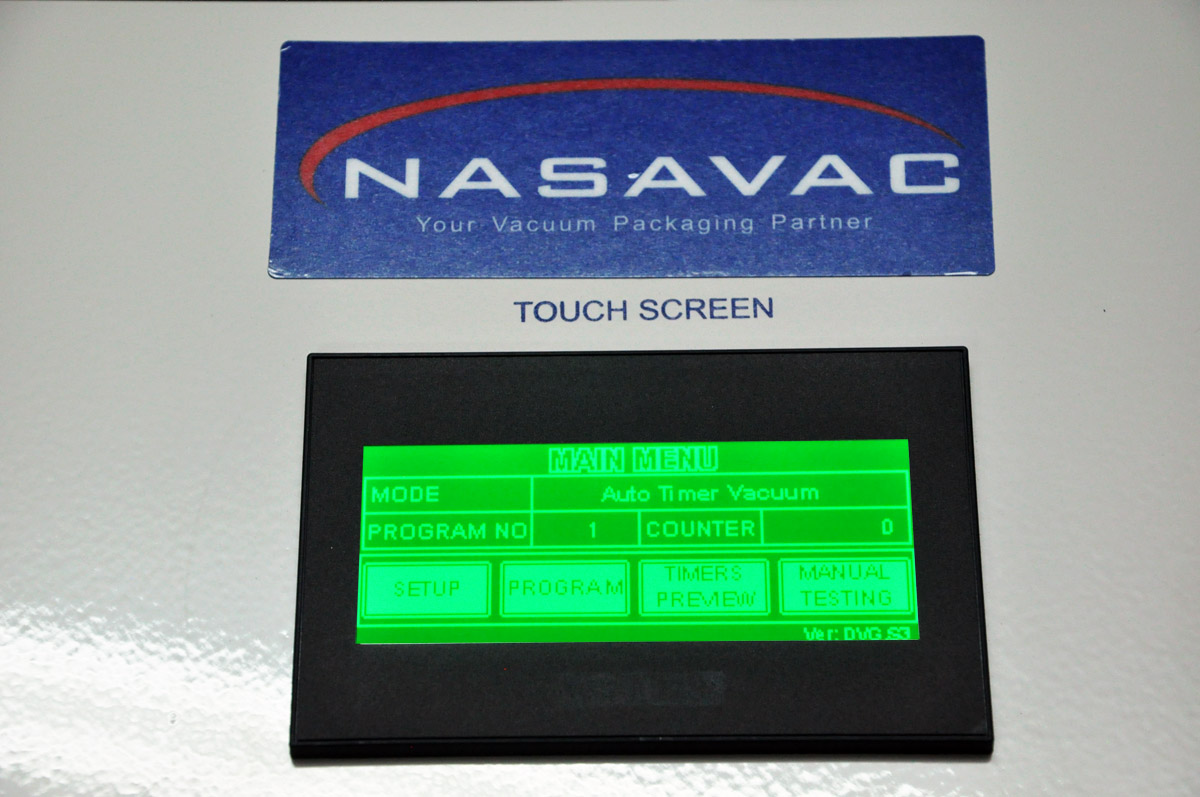

  • PLC control & touch screen (HMI) system
  • 10 programmable memory for vacuum time, gas time, heat time and cool time settings
  • Password protection for setup page

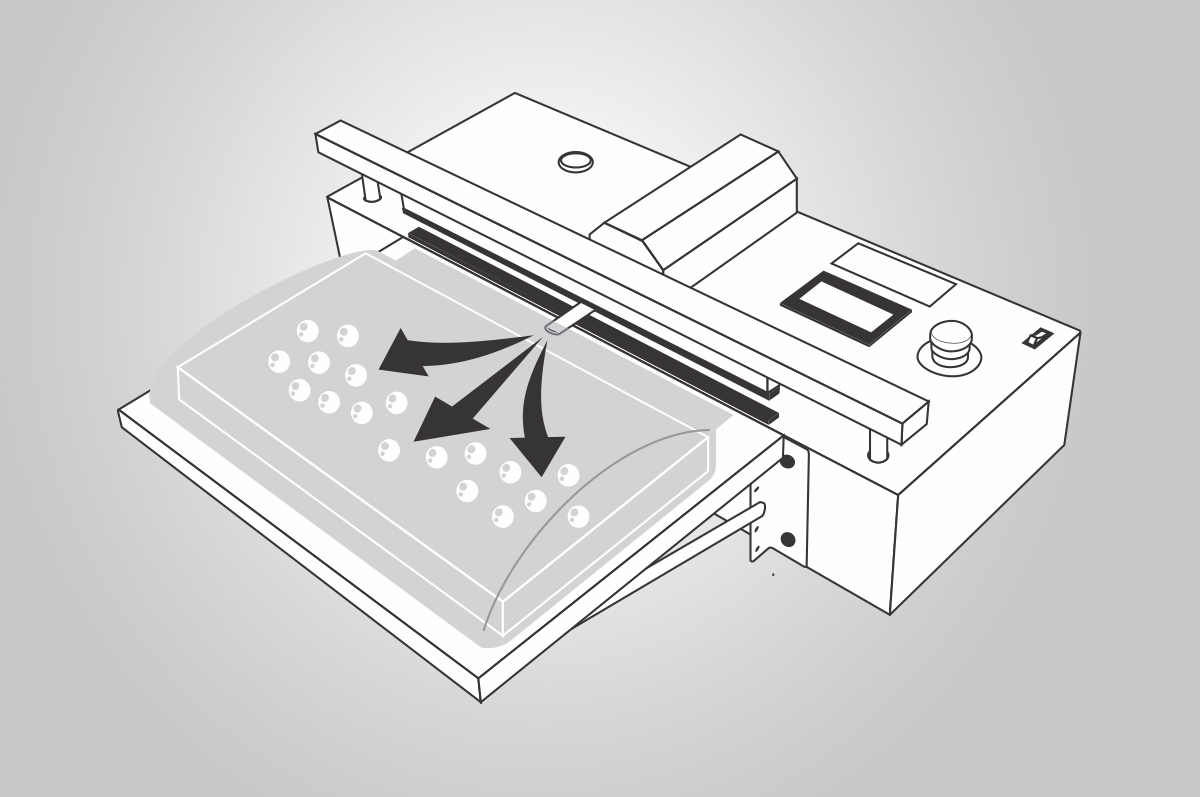

  • Gas purging function
  • 5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac,Gas, Gas-Vac-Gas-Vac, Seal Only
  • Packing counter for production monitoring
  • Visible and audible alarm
  • Vacuum gauge
  • High performance impulse sealing system
  • Electronic foot pedal switch activated
ModelVG-200VG-250VG-300
Power:
Single Phase AC 110V, 60Hz
Air Requirement:
87 PSI @ 5 cfm
Gas:
Flow: 5.85 cfm, Pressure: 60 PSI (Max), Nitrogen (N2), Argon (Ar) or Carbon Dioxide (CO2)
Dimensions:(L) 32″ x (W) 13″ x (H) 9″(L) 37″ x (W) 13″ x (H) 9″(L) 42″ x (W) 13″ x (H) 9″
Seal Dimension:(L) 20″ x (W) 6mm(L) 25″ x (W) 6mm(L) 30″ x (W) 6mm
Operation Mode:
5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac,Gas, Gas-Vac-Gas-Vac, Seal Only
Vacuum:
Flow: 2.94 cfm, Pressure: -26 inHg (Max), Vacuum Ejector Pump

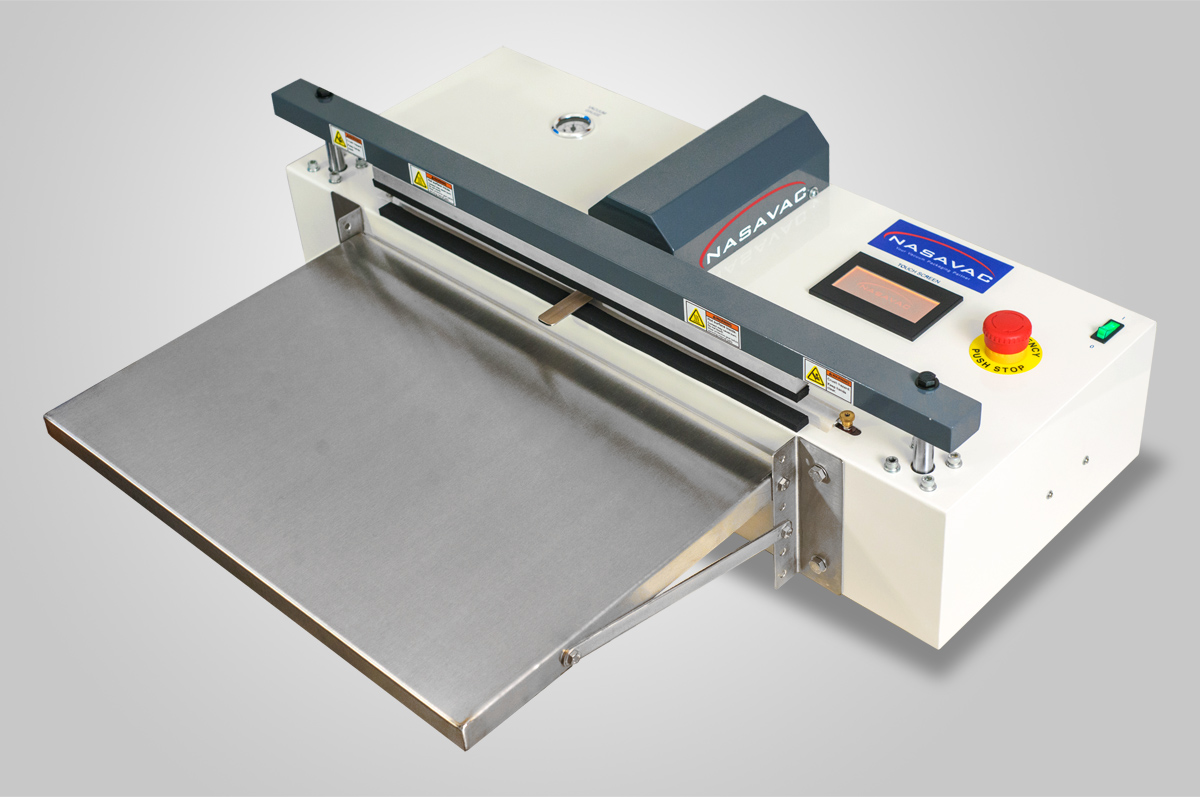

  • Stainless Steel Working Platform

    Working Platform

  • Vacuum Filter

    Vacuum Filter

  • Nozzle Length Extension

    Nozzle Length Extension

  • Vertical Stand
  • Other Sealing Width (8mm, 10mm)
  • Other Voltage Configuration (220V/240V AC or 100V AC)

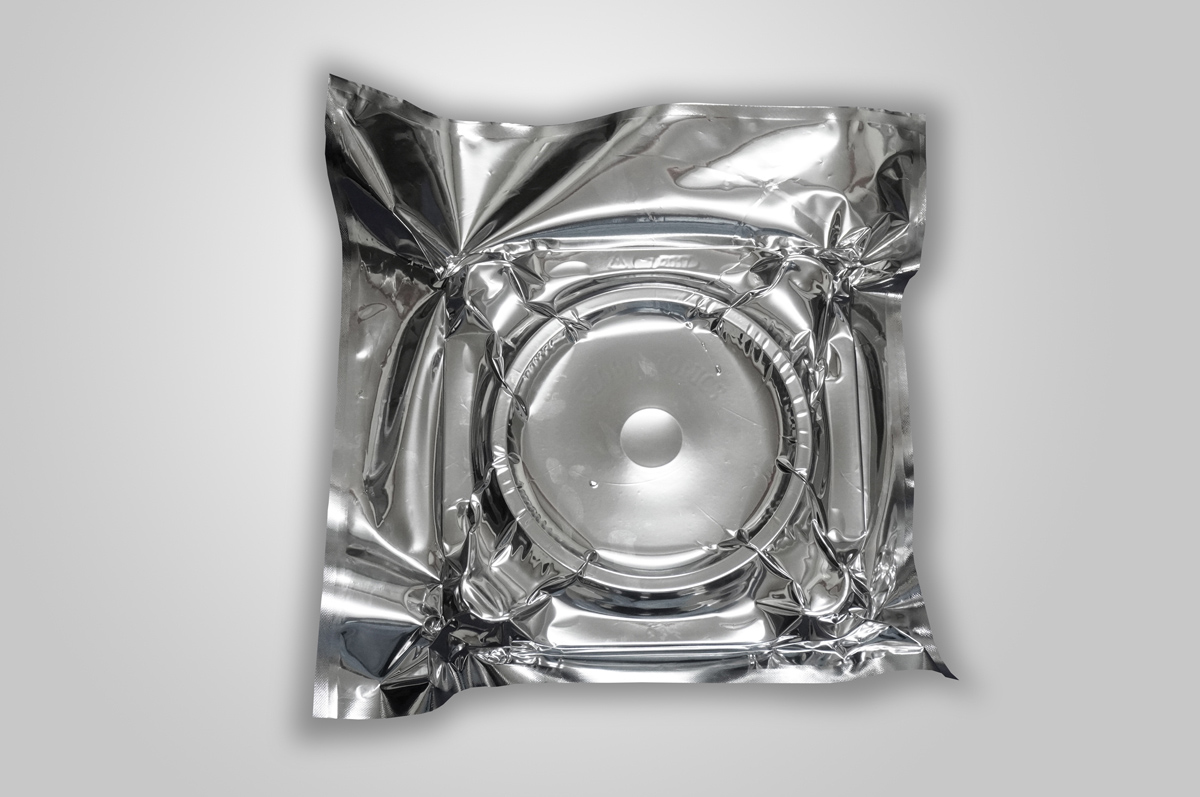

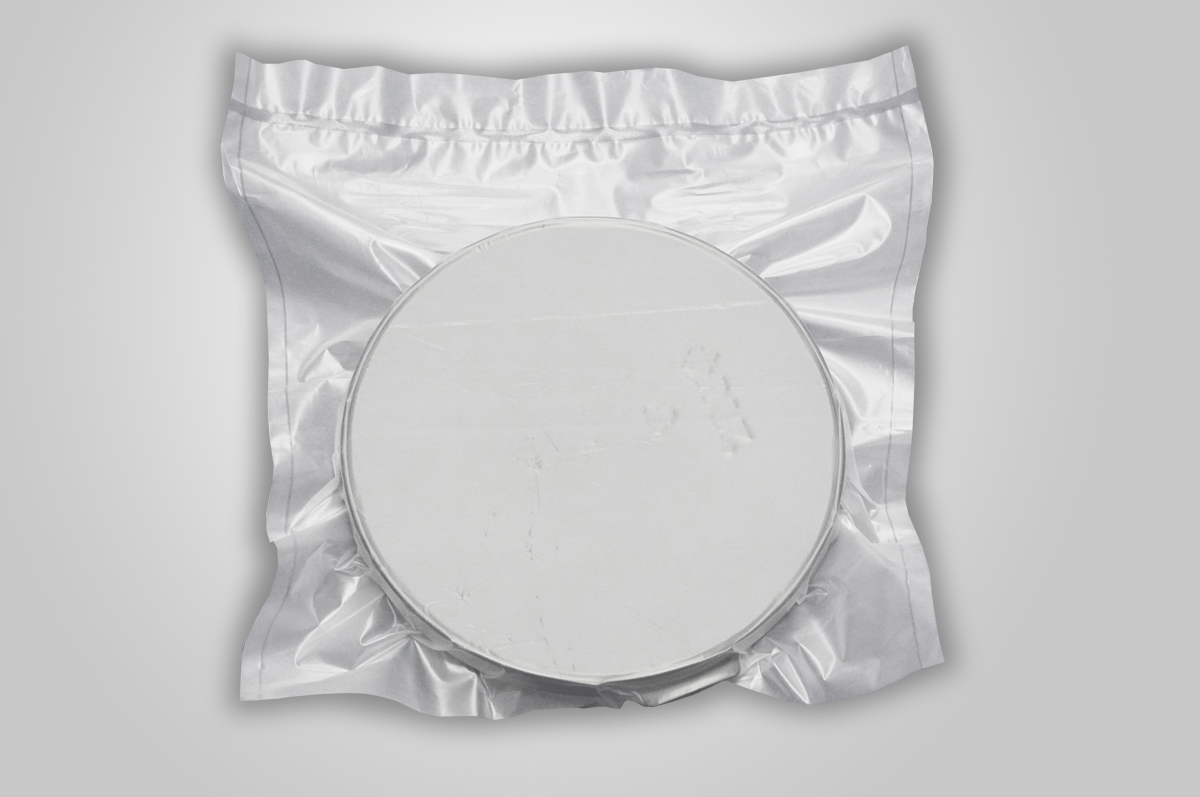

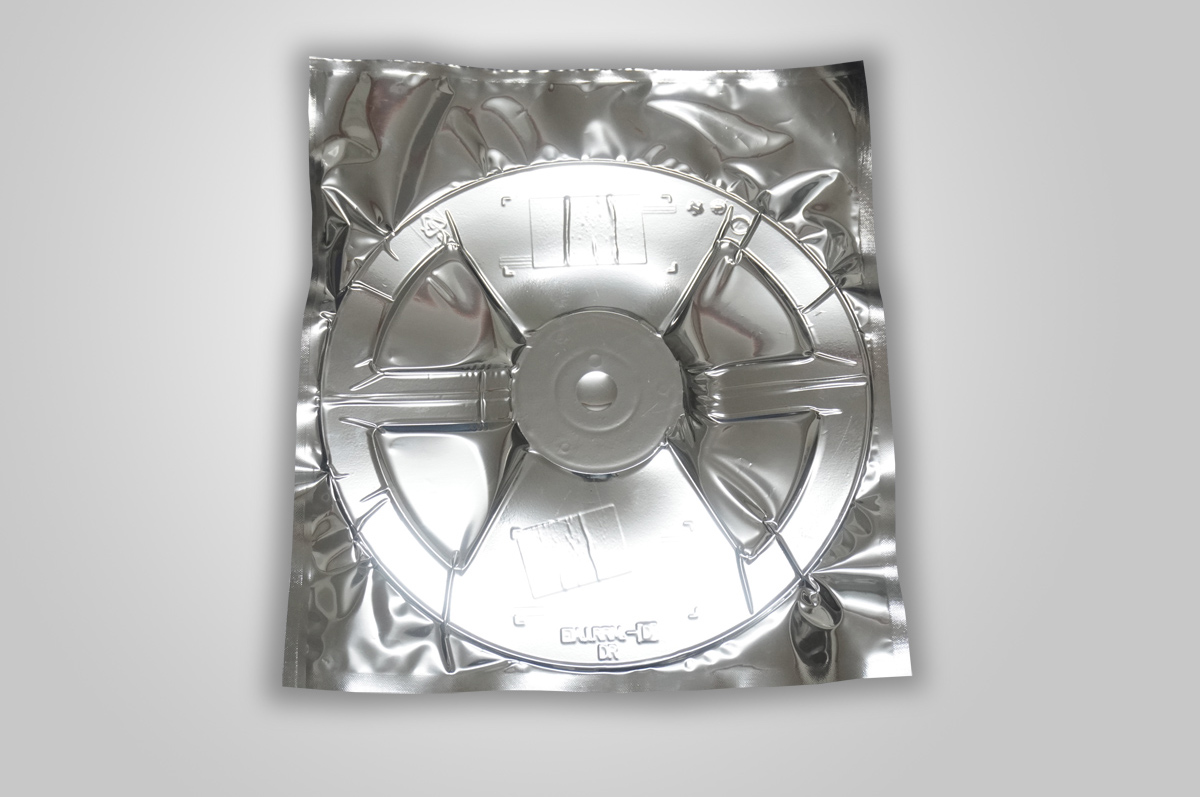

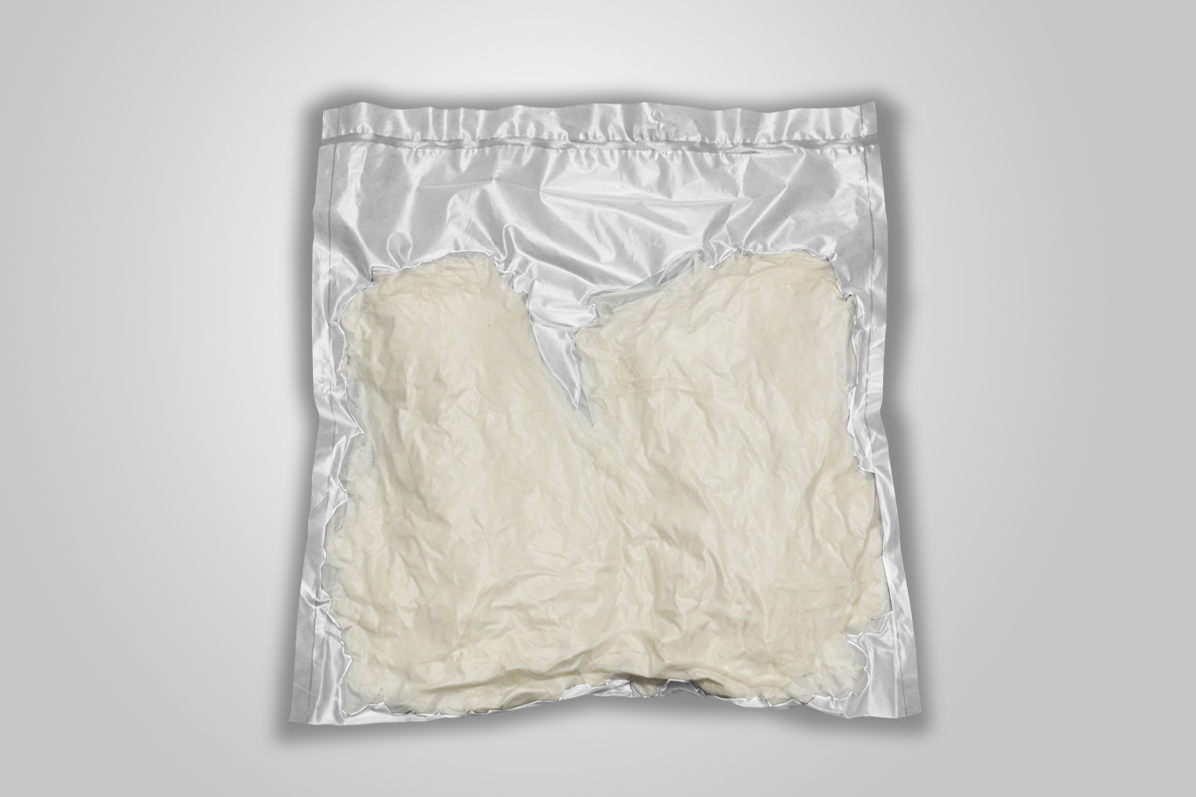

Vacuum-Gas-Vacuum-Gas Mode Gas-Vacuum Mode Tape & Reel Gas-Vacuum-Gas-Vacuum Mode Pack Sealing Only Mode
