Jupiter 32

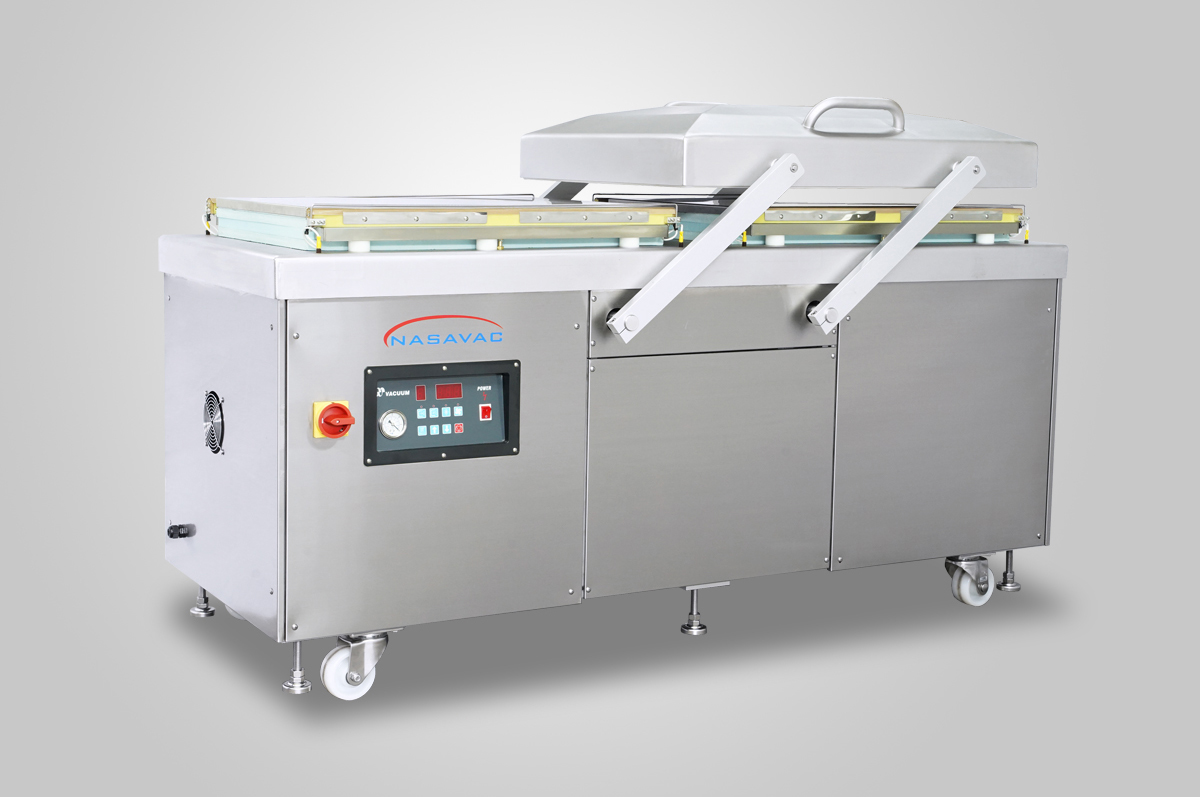

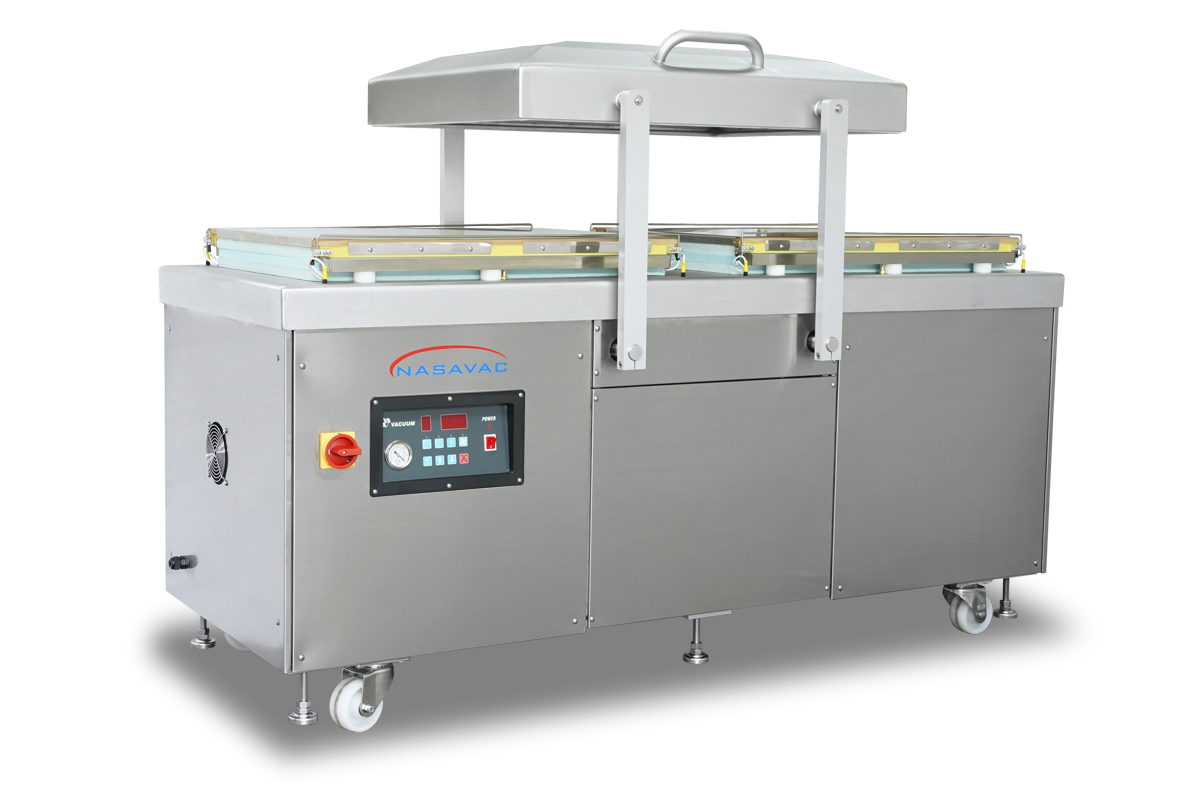

Double Chamber Vacuum Sealer

The double chamber vacuum sealer has higher productivity than a single chamber vacuum sealers, as bag loading and unloading can be done while the other chamber is vacuuming. The control system is powered by microcontroller with 10 programmable memory settings. The double chamber vacuum sealer is fully industrial grade stainless steel constructed, ideal for food, medical, electronics and industrial applications. It has flatten work platform for hassle-free chamber wash down. The optional soft air prevents damage to delicate products.

FEATURES

Stainless steel chassis
High performance impulse sealing system

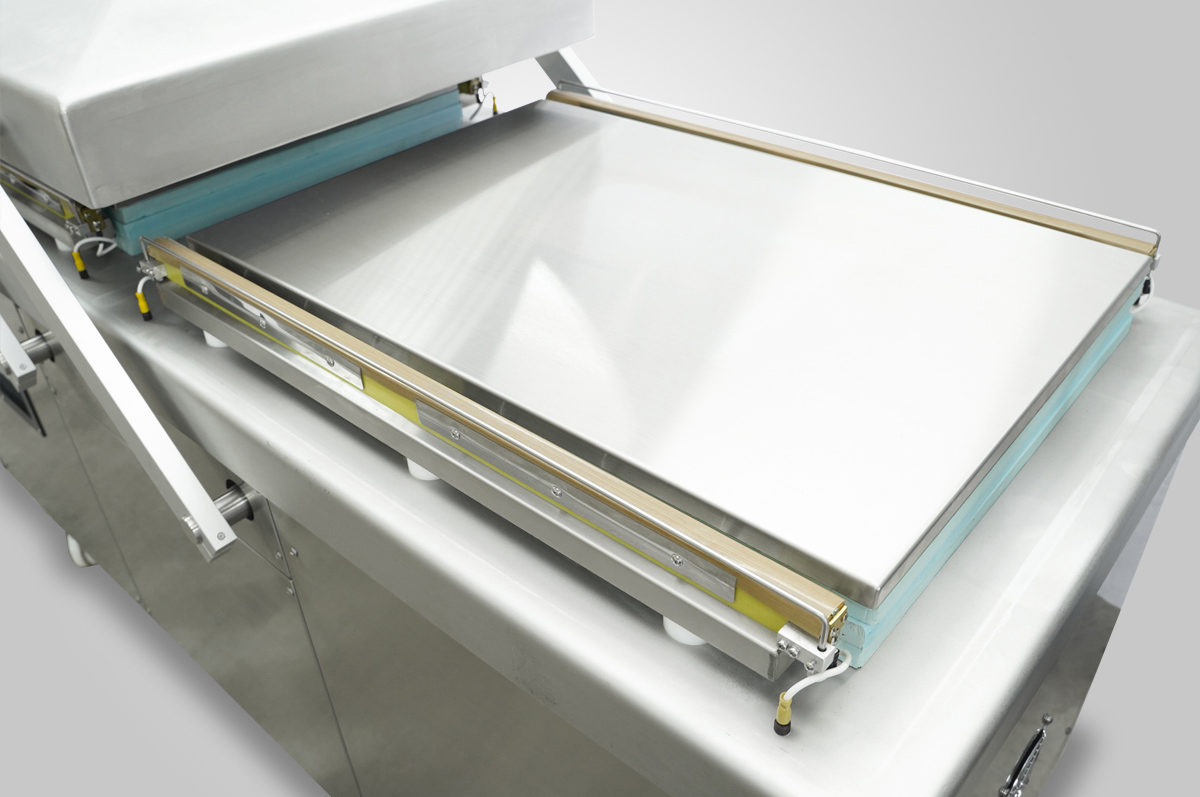

Aluminum alloy sealing bar with bladder activated sealing
Robust design for tough & wet environment
Splash proof control panel
Powered by micro-controller with 10 programmable memory settings
Emergency reset system
Stainless steel chamber lid
Flat chamber for easy cleaning
Easy sealing element and Teflon tape replacement
Easy cleaning
Packing counter for production monitoring
Powered by oil lubricated rotary vane vacuum pump

TECHNICAL SPECIFICATIONS

Model	JUPITER 32
Power:	Three Phase AC 220V, 60Hz
Dimensions:	(L) 75 ¼” x (W) 33 ½” x (H) 41 ¼”
Machine Weight:	1100lb
Chamber Height:	6 ½” (Effective Height= 6″)

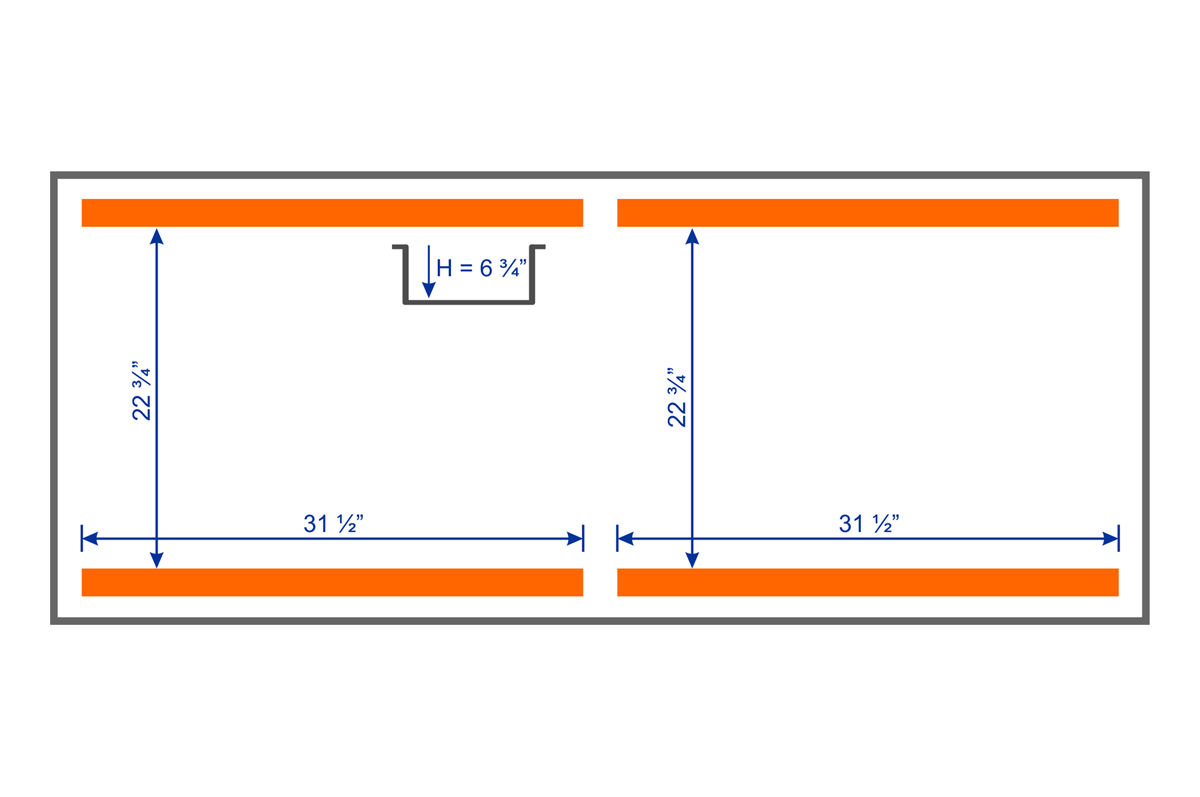

Chamber Dimension:	(L) 31 ½” x (W) 22 ¾” x (H) 6 ½”
Sealing Bar Configuration:	Front & Back: Seal Bar Distance = 22 ¾”
Sealing Length:	31 ½”
Sealing Width:	3.5mm x 2 Lines Flat Heating Element
Maximum Vacuum:	-29 inHg
Vacuum:	100 m³/H 4 HP Oil Lubricated Rotary Vane Vacuum Pump
