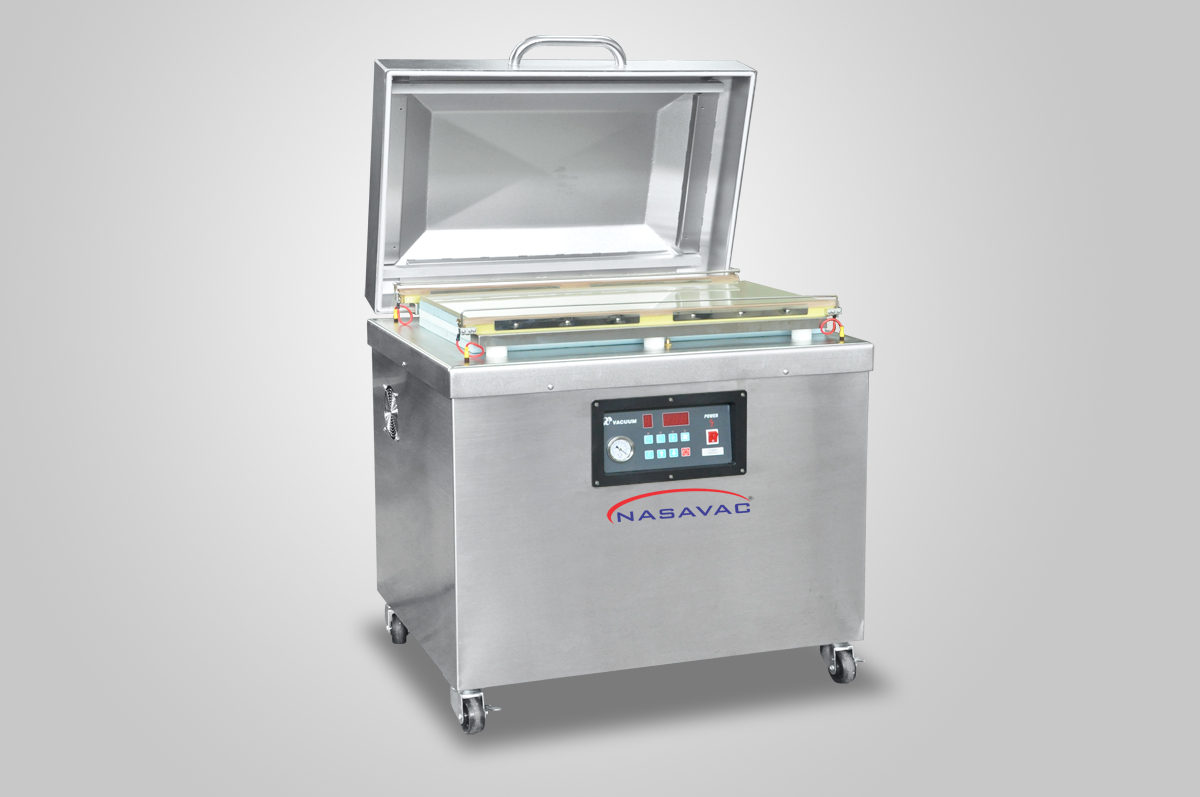

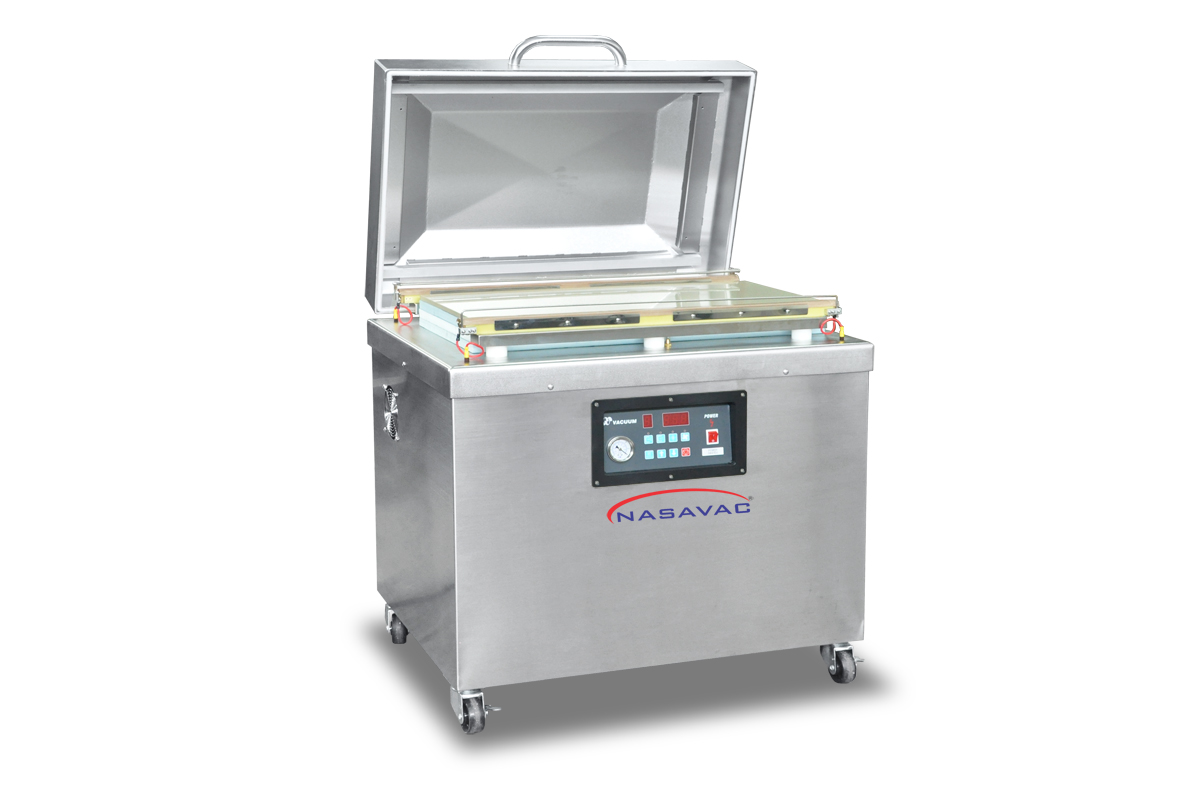

Neptune 38

Jumbo Single Chamber Vacuum Sealer

NEPTUNE 38 – versatile jumbo vacuum sealer with two side of the sealing bar, mobility, and heavy duty usage. It is ideal for the packaging of several pouches per cycle of large sized products. The control system is powered by microcontroller with 10 programmable memory settings. The single chamber vacuum sealer is fully industrial grade stainless steel constructed, ideal for food, medical, electronics and industrial applications. It has flatten working platform for hassle-free chamber wash down. The optional soft air prevents damage to delicate products

FEATURES

Stainless steel chassis
High performance impulse sealing system
Aluminum alloy sealing bar with bladder activated sealing
Robust design for tough & wet environment
Splash proof control panel
Powered by micro-controller with 10 programmable memory settings
Emergency reset system
Stainless steel chamber lid
Flat chamber for easy cleaning
Easy sealing element and Teflon tape replacement
Easy cleaning
Packing counter for production monitoring
Powered by oil lubricated rotary vane vacuum pump

TECHNICAL SPECIFICATIONS

Model	NEPTUNE 38	NEPTUNE 38S	NEPTUNE 38L
Power:	Three Phase AC 220V, 60Hz
Dimensions:	(L) 41 ¼” x (W) 28″ x (H) 38 ½”
Machine Weight:	400lb
Chamber Height:	7″ (Effective Height= 6 ¾”)

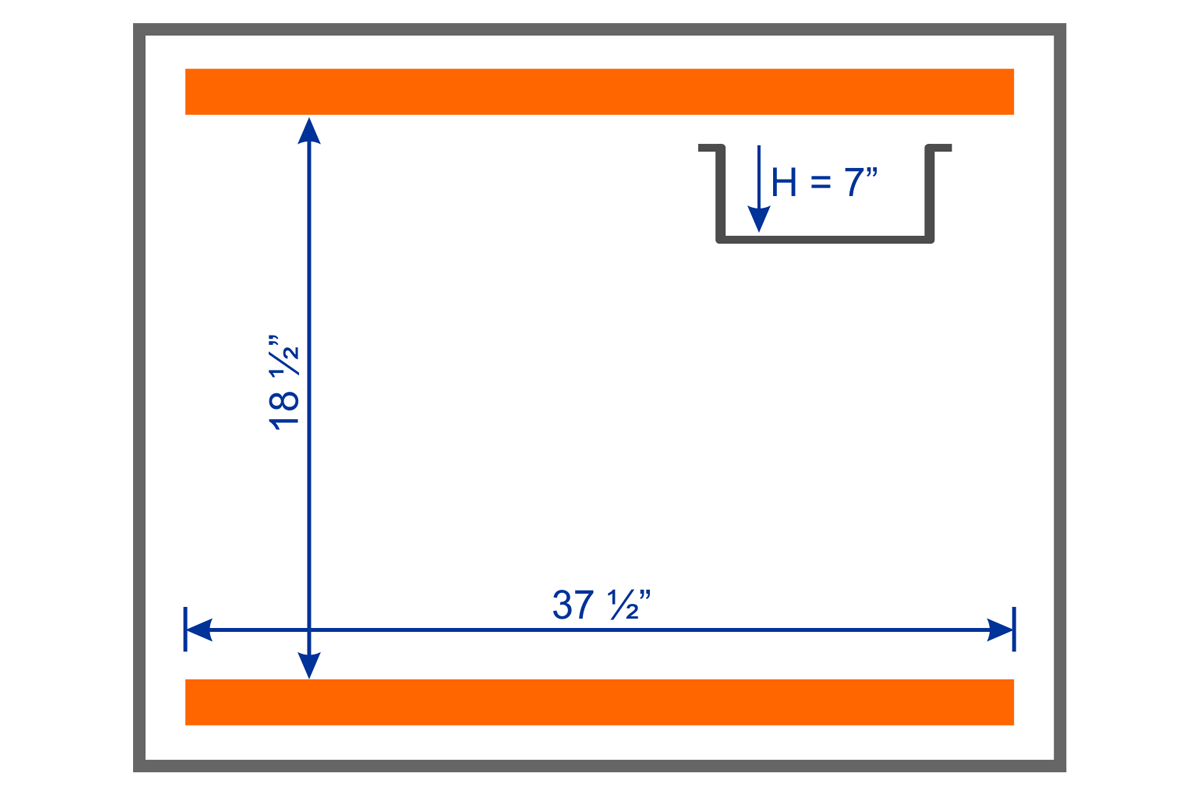

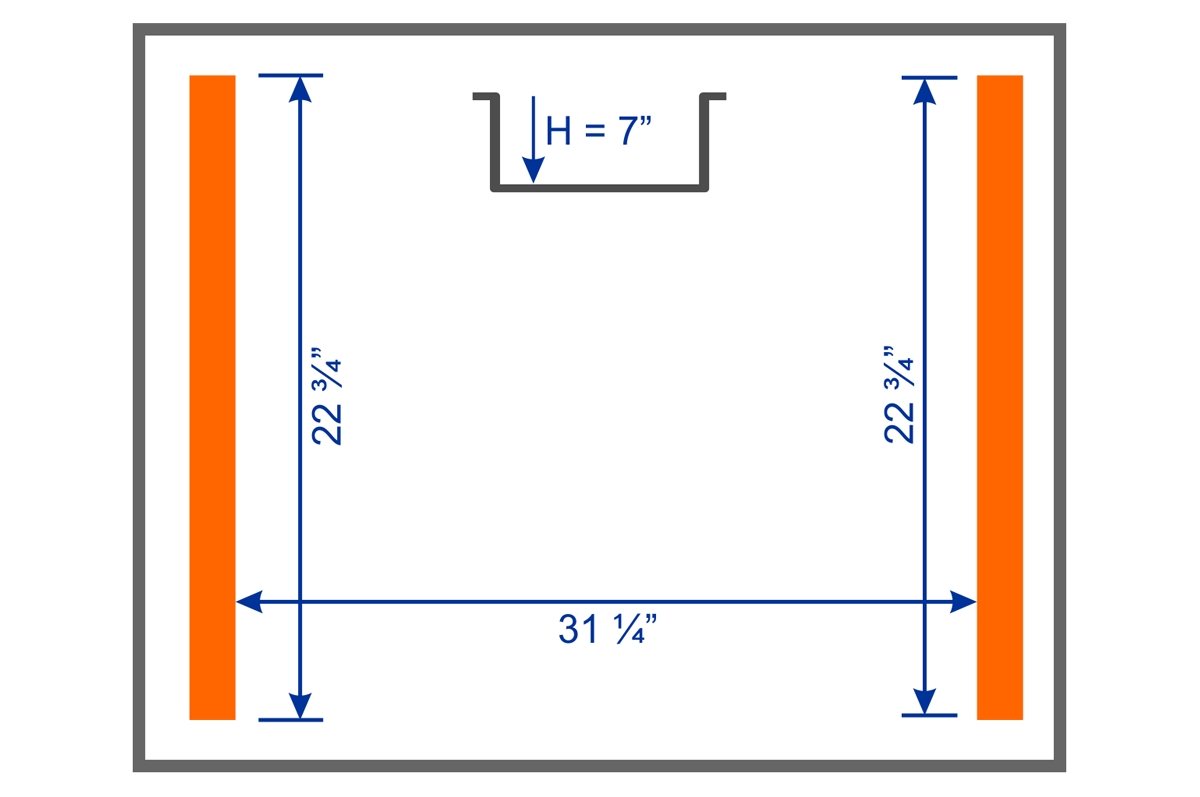

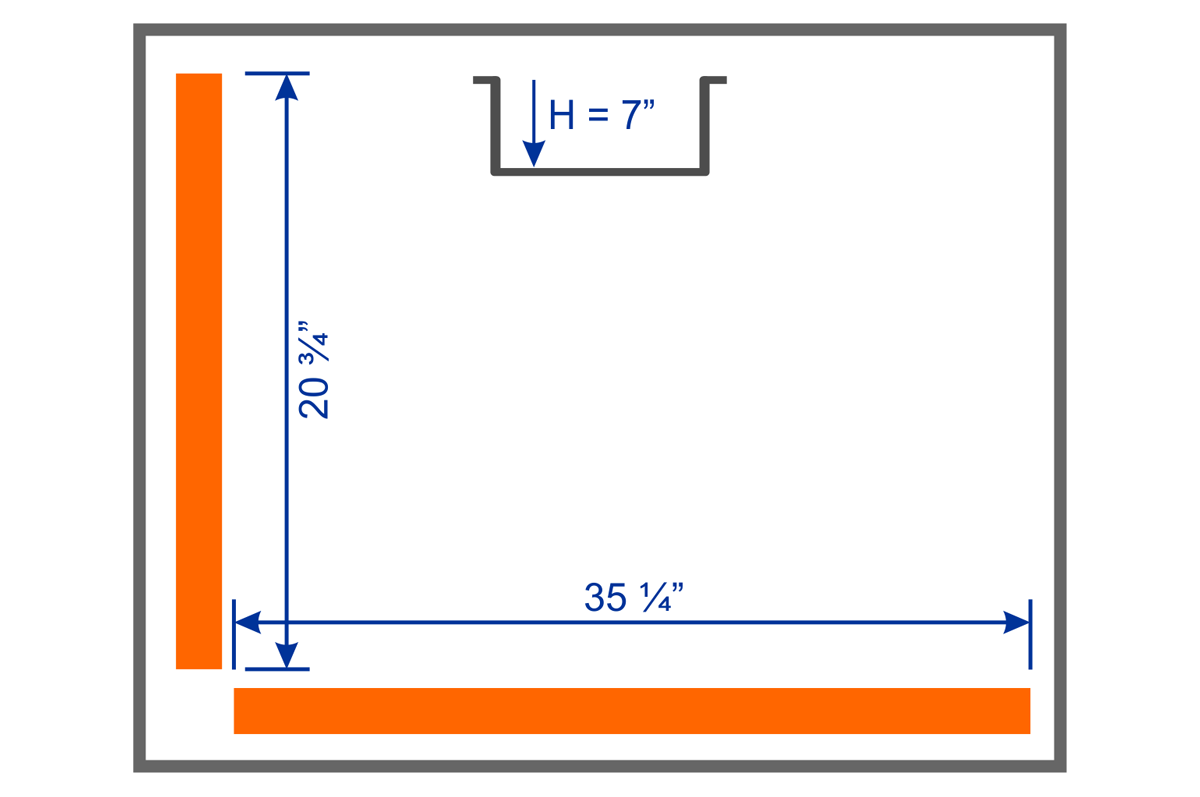

Chamber Dimension:	(L) 37 ½” x (W) 18 ½” x (H) 7″	(L) 31 ¾” x (W) 22 ¾” x (H) 7″	(L) 36 ¼” x (W) 21 ¼” x (H) 7″
Sealing Bar Configuration:	Front & Back: Seal Bar Distance = 18 ½”	Left & Right: Seal Bar Distance = 31 ¾”	L-Shape
Sealing Length:	2 x 37 ½”	2 x 22 ¾”	1 x 35 ¼” and 1 x 20 ¾”
Sealing Width:	3.5mm x 2 Lines Flat Heating Element
Maximum Vacuum:	-29 inHg
Vacuum:	100 m³/H 4 HP Oil Lubricated Rotary Vane Vacuum Pump
