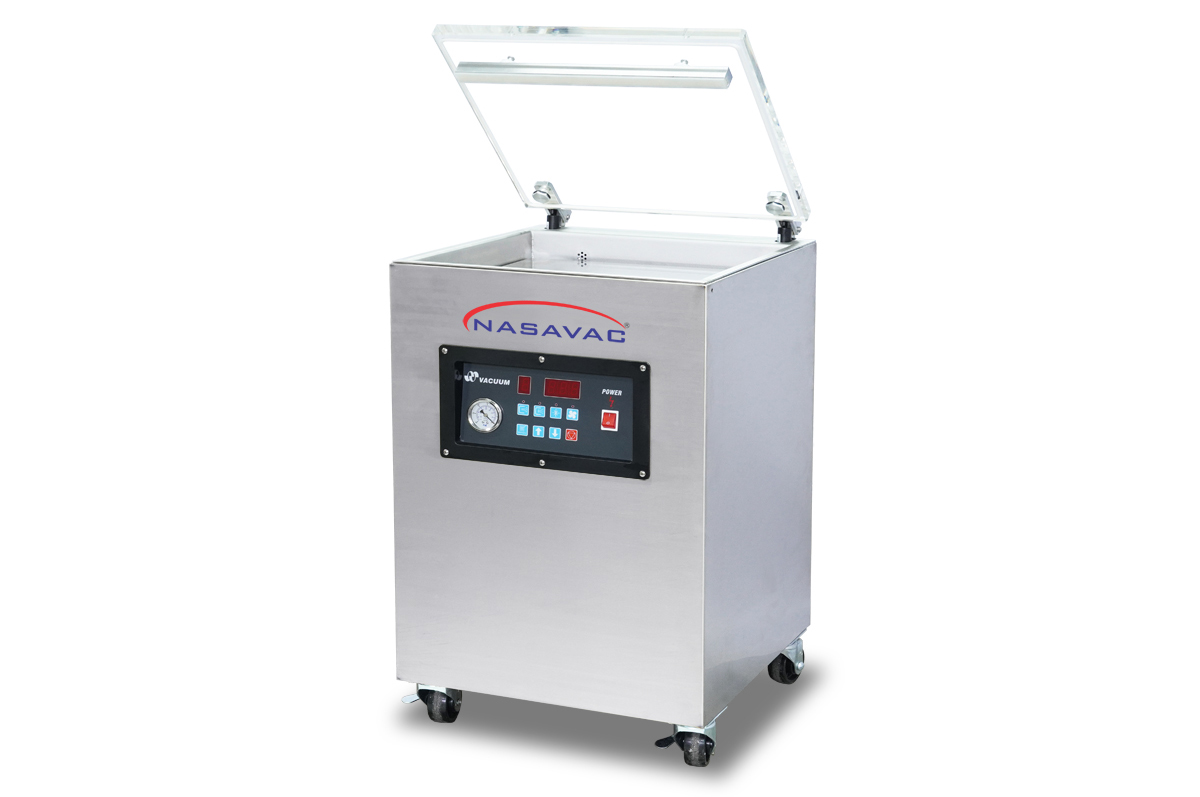

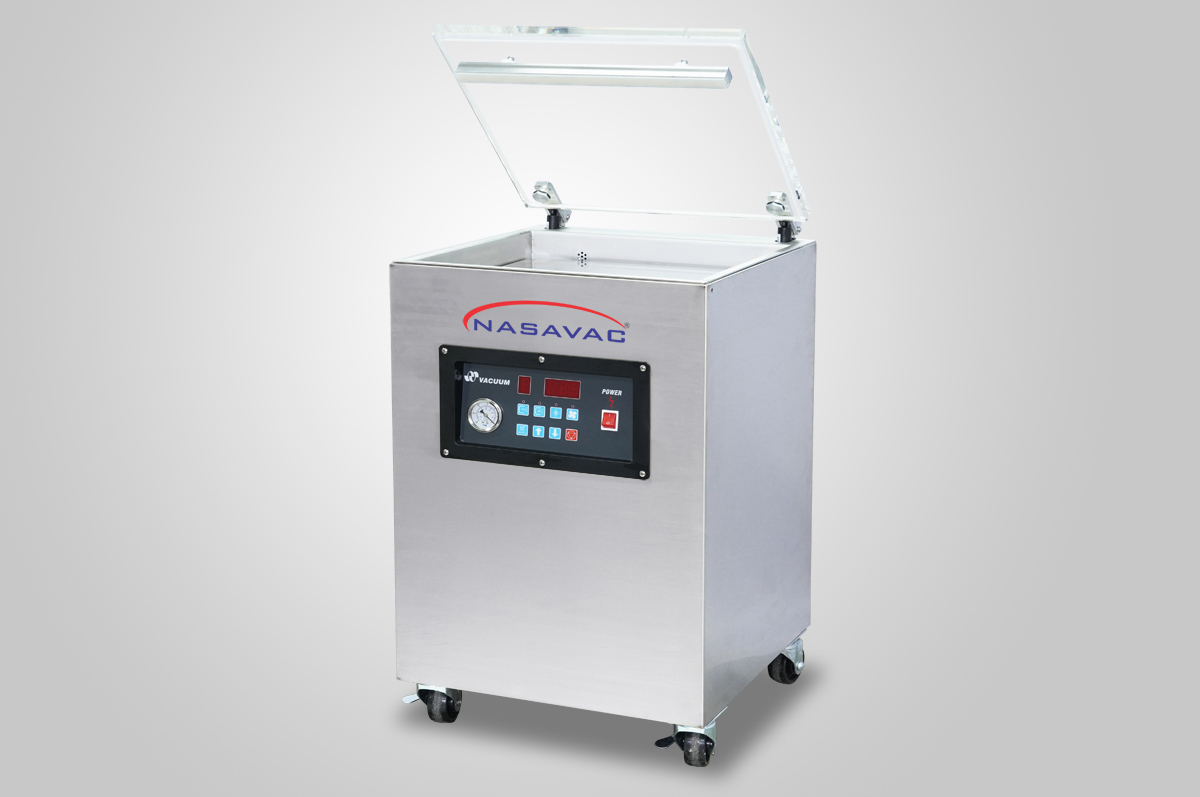

Mid-Size Single Chamber Vacuum Sealer

NEPTUNE 20- mid-size floor standing single chamber vacuum sealer has digital control, single sealing bar, and optional soft air to prevent damage to delicate products. The transparent glass lid assist in vacuum packaging process visualization. The control system is powered by micro-controller with 10 programmable memory settings.

  • Stainless steel chassis
  • High performance impulse sealing system
  • Aluminum alloy sealing bar with bladder activated sealing
  • Robust design for tough & wet environment
  • Splash proof control panel
  • Powered by micro-controller with 10 programmable memory settings
  • Emergency reset system
  • Transparent glass lid
  • Easy sealing element and Teflon tape replacement
  • Easy cleaning
  • Packing counter for production monitoring
  • Powered by oil lubricated rotary vane vacuum pump
Model
NEPTUNE 20
Power:
Single Phase AC 110V, 60Hz
Dimensions:
(L) 20 ½” x (W) 23 ¼”” x (H) 33 ¾”
Machine Weight:
210lb
Chamber Height:
7″ (Effective Depth = 6 ¾”) or 11.8″ (Effective Depth= 11 ¾”) Either one to select upon placing order
Chamber Dimension:
(L) 17″ x (W) 14 ¼” x (H) 5″
Sealing Bar Configuration:
Front
Sealing Length:
16 ¾”
Sealing Width:
3.5mm x 2 Lines Flat Heating Element
Maximum Vacuum:
-29 inHg
Vacuum:
20 m3/H 1 HP Oil Lubricated Rotary Vane Vacuum Pump
  • Vacuum Filter
  • Gas Purging / Flushing

    Gas Purge Function

  • Soft Air Sensor Control
  • Bi-Active Impulse Sealing System (Top & Bottom Heating)

    Bi-Active Impulse Sealing System

  • 10mm Sealing Width
  • Vacuum Pressure Control Option

    Digital Vacuum Sensor

  • Other Voltage Configuration (220V/240V AC or 100V AC)
Cheese Vacuum Pack with Gas Purging IC Tray Vacuum Pack Gas Purging for Brass Fittings
