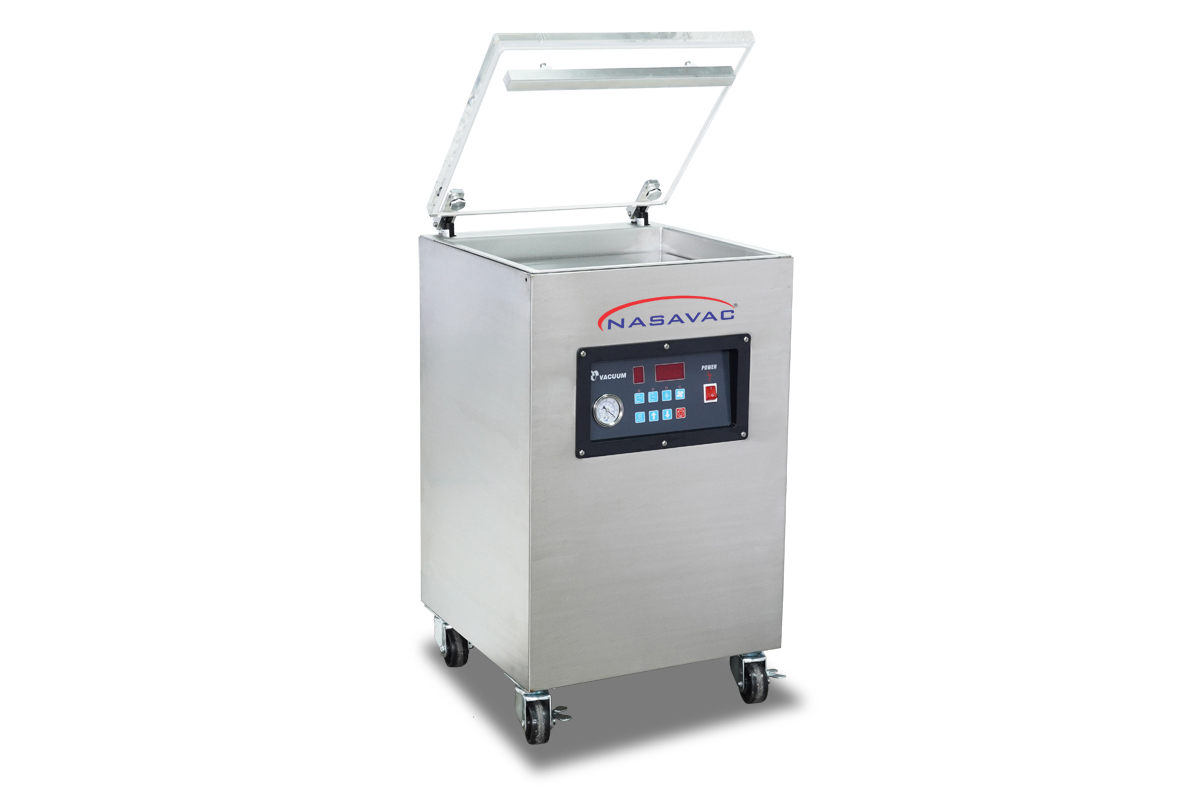

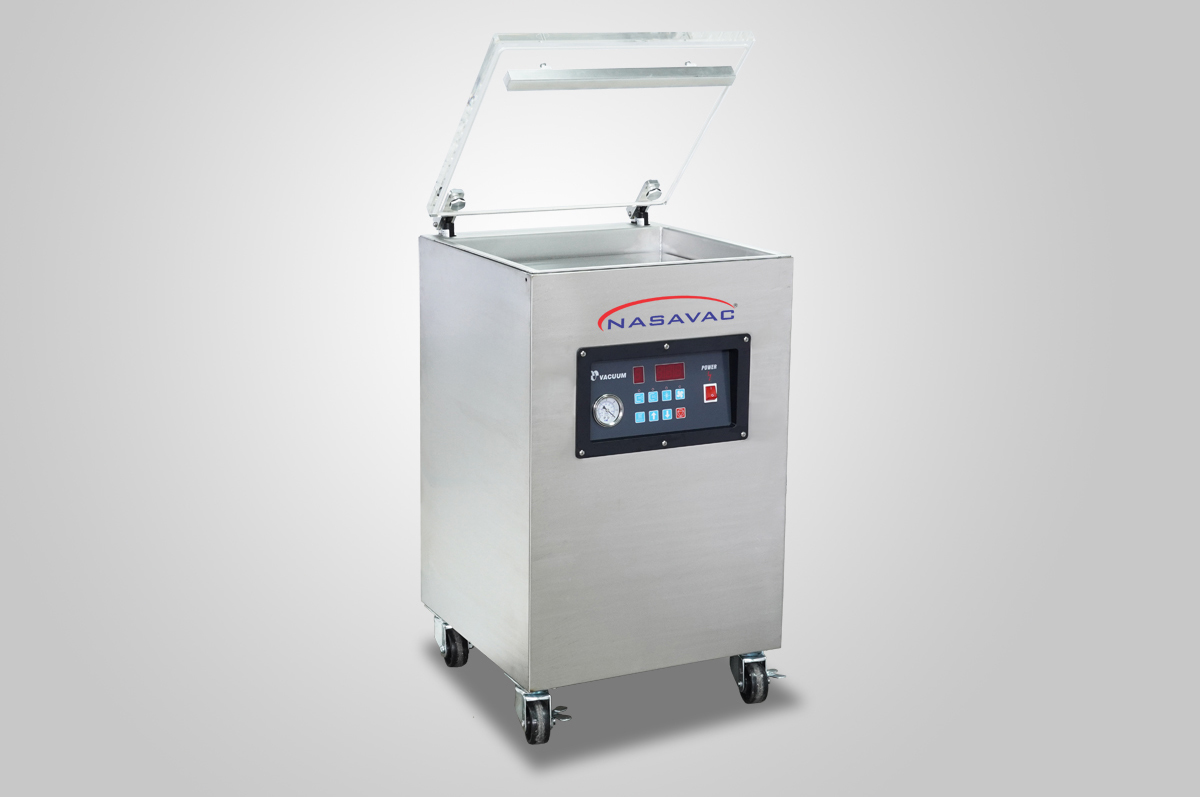

Compact Single Chamber Vacuum Sealer


NEPTUNE 16 – compact floor standing single chamber vacuum sealer has digital control, single sealing bar, and optional soft air to prevent damage to delicate products. The transparent glass lid assist in vacuum packaging process visualization. The control system is powered by micro-controller with 10 programmable memory settings.

  • Stainless steel chassis
  • High performance impulse sealing system
  • Aluminum alloy sealing bar with bladder activated sealing
  • Compact design to suite retails business, small and medium industry
  • Splash proof control panel
  • Powered by micro-controller with 10 programmable memory settings
  • Emergency reset system
  • Transparent glass lid
  • Easy sealing element and Teflon tape replacement
  • Easy cleaning
  • Packing counter for production monitoring
  • Powered by oil lubricated rotary vane vacuum pump
Single Phase AC 110V, 60Hz
(L) 20 ½” x (W) 23 ¼” x (H) 33 ¾”
Machine Weight:
165 lb
Chamber Height:
5″ (Effective Depth = 4 ¾”)

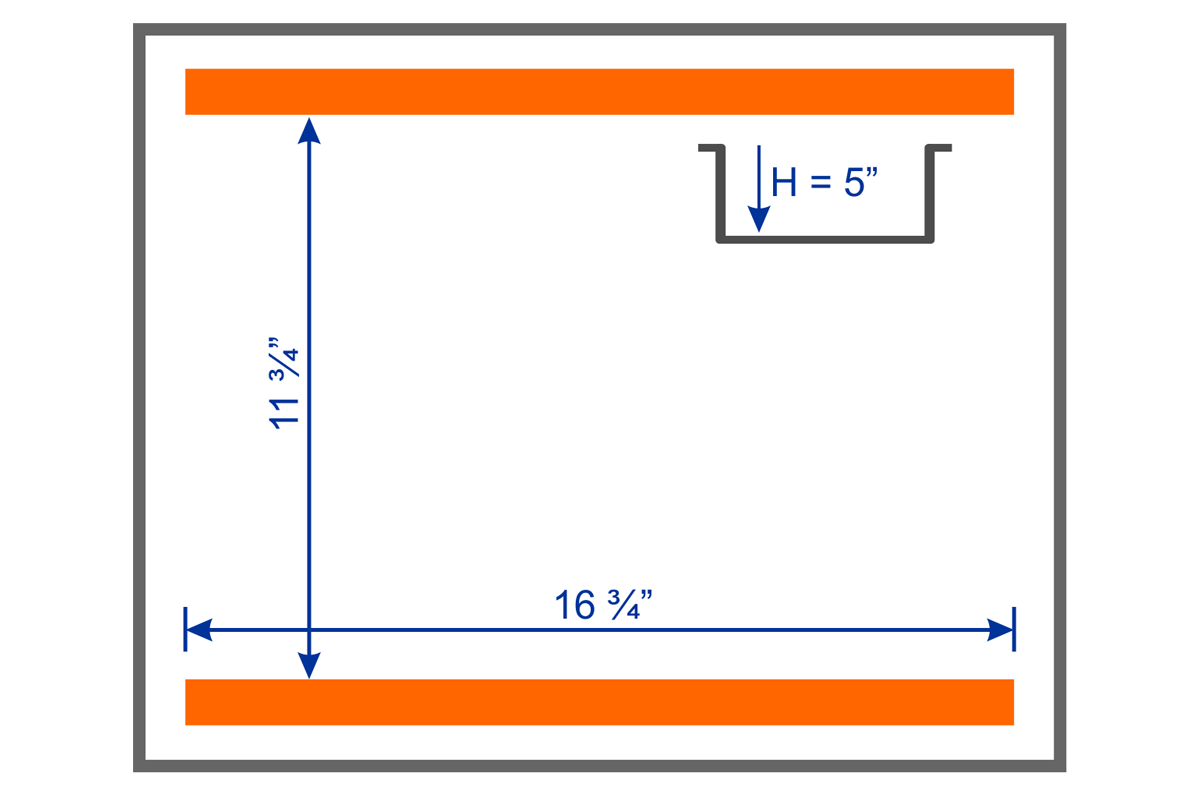

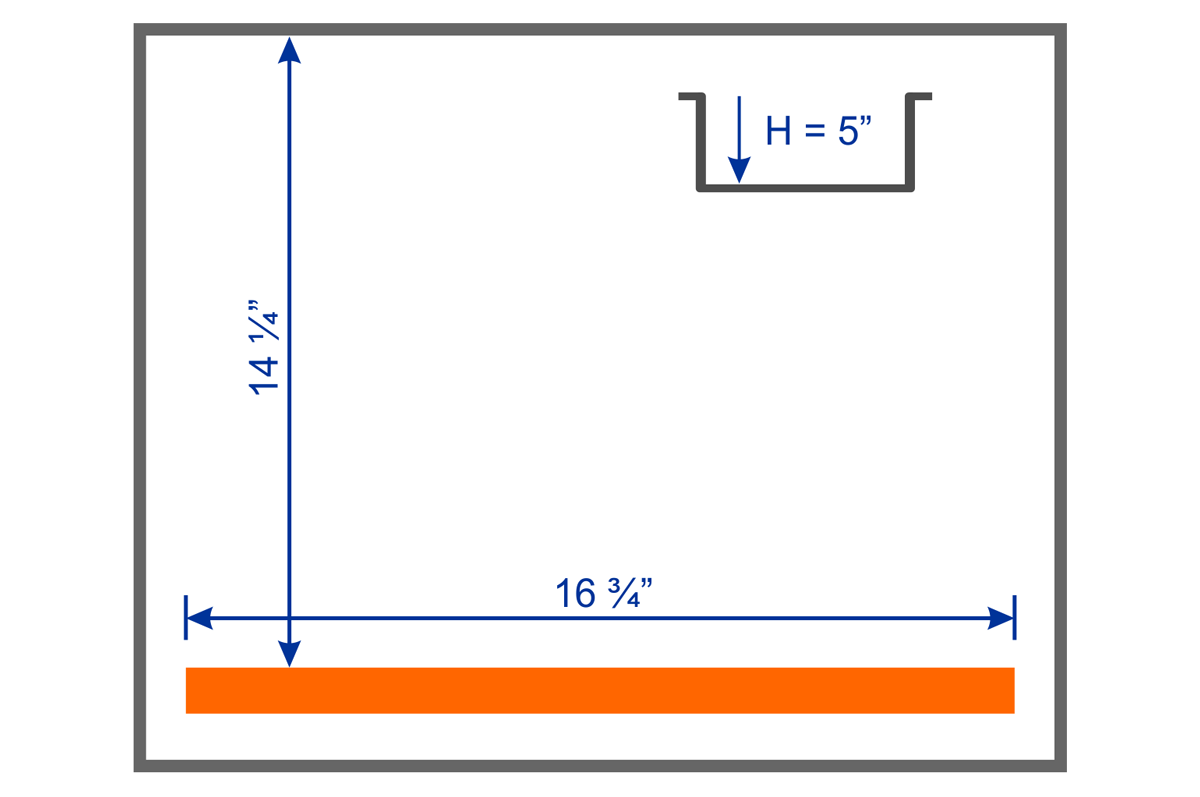

Chamber Dimension:(L) 17″ x (W) 14 ¼” x (H) 5″(L) 17″ x (W) 11 ¾” x (H) 5″
Sealing Bar Configuration:FrontFront & Back
Sealing Length:
16 ¾”
Sealing Width:
3.5mm x 2 Lines Flat Heating Element
Maximum Vacuum:
-29 inHg
20 m3/H 1 HP Oil Lubricated Rotary Vane Vacuum Pump
  • Vacuum Filter
  • Gas Purging / Flushing

    Gas Purge Function

  • Soft Air Sensor Control
  • Bi-Active Impulse Sealing System (Top & Bottom Heating)

    Bi-Active Impulse Sealing System

  • 10mm Sealing Width
  • Vacuum Pressure Control Option

    Digital Vacuum Sensor

  • Other Voltage Configuration (220V/240V AC or 100V AC)
Burgers Preservation Vacuum Pack
